dsp controller

controller DSP



controller DSP

dsp controller general description

input functions

Input mute *each channel separately
Input gain -80dB to +12dB in 0,2 dB steps
Input delay adjustable from 0 -1000ms
0 to 10ms in 21μs steps / 10ms to 20ms in 84μs / 20ms to 1000ms in 0.5ms
Input polarity switchable ±
Input EQ
6 adjustable full parametric EQ available at each input channel
filter frequency adjustable from 20Hz to 20kHz
bandwidth adjustable from 0.05 oct. to 3oct.
gain adjustable from -20dB to +20dB in 0.1dB steps
Input compressor
threshold -40dBU to +20dBU in 0.5 dB steps
compression ratio adjustable from 1:1 to 20:1
in 0.1 steps from 1:1 to 2:1 in 0.5 steps from 2:1 to 20:1
response time adjustable from 0.3ms to 200ms
in 0.1ms steps from 0.3ms to 1ms, in 1ms steps from 1ms to 200ms
release time adjustable from 50ms to 5000ms in 1ms steps
Input expander
threshold -40dBU to +20dBU in 0.5 dB steps
expansion ratio adjustable from 1:1 to 1:20
in 0.1 steps from 1:1 to 1:2 in 0.5 steps from 1:2 to 1:20
response time adjustable from 0.3ms to 200ms
in 0.1ms steps from 0.3ms to 1ms, in 1ms steps from 1ms to 200ms
release time adjustable from 50ms to 5000ms in 1ms steps



key features

  • 96kHz sampling ratio
  • 32 bit processing
  • 24 bit A/D and D/A converter
  • network compatible RS 485
  • up to 250 controllers in one network
  • delay time adjustable up to 1000ms
  • 30 internal presets
  • unlimited preset library on PC
  • advanced and convenient PC software
  • self-explaining simple menu guidance
  • password lock function available

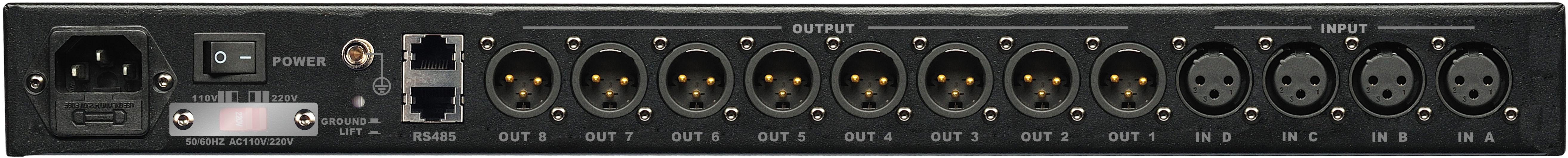

  • network socket 2 x RJ-45 (rear panel)
  • USB socket (front panel)
  • optional WIFI converter WT-1 available
  • optional RS 485 converter IF-485 available



output functions

output mute *each channel separately
output gain -80dB to +12dB in 0,2 dB steps
output delay adjustable from 0 -1000ms
0 to 10ms in 21μs steps / 10ms to 20ms in 84μs / 20ms to 1000ms in 0.5ms
output polarity switchable ±
output EQ
6 adjustable full parametric EQ available at each output channel
the filter characteristic of each filter can be selected
as Low-shelf, High-shelf or PEQ parametric EQ
PEQ filter frequency adjustable from 20Hz to 20kHz
PEQ bandwidth adjustable from 0.05oct. to 3oct.
PEQ gain adjustable from -20dB to +20dB in 0.1dB steps
Low-shelf and High-shelf slew rate switchable 6dB/oct or 12dB/oct
Low-shelf and High-shelf filter frequency adjustable from 20Hz to 20kHz
Low-shelf and High-shelf gain adjustable from -20db to +20dB
output compressor threshold -40dBU to +20dBU in 0.5 dB steps
compression ratio adjustable from 1:1 to 20:1
in 0.1 steps from 1:1 to 2:1 in 0.5 steps from 2:1 to 20:1
response time adjustable from 0.3ms to 200ms
in 0.1ms steps from 0.3ms to 1ms in 1ms steps from 1ms to 200ms
release time adjustable from 50ms to 5000ms in 1ms steps
output limiter threshold -40dBU to +20dBU in 0.5 dB steps
attack time adjustable from 0.3ms to 200ms in 0.1ms steps
in 0.1ms steps from 0.3ms to 1ms, in 1ms steps from 1ms to 200ms
release time adjustable from 50ms to 5000ms in 1ms steps
crossover
LPF and HPF can be set into each output channel
selectable filter types: Linkwitz-Riley, Bessel, Butterworth
filter frequency can be set between 20Hz and 20kHz
available slew rates: 12dB/oct. 18dB/oct. 24dB/oct. 30dB/oct.
36dB/oct. 42dB/oct. 48dB/oct.





controller models

SV-204 >>>> 2 In - 4 out
SV-306 >>>> 3 In - 6 out

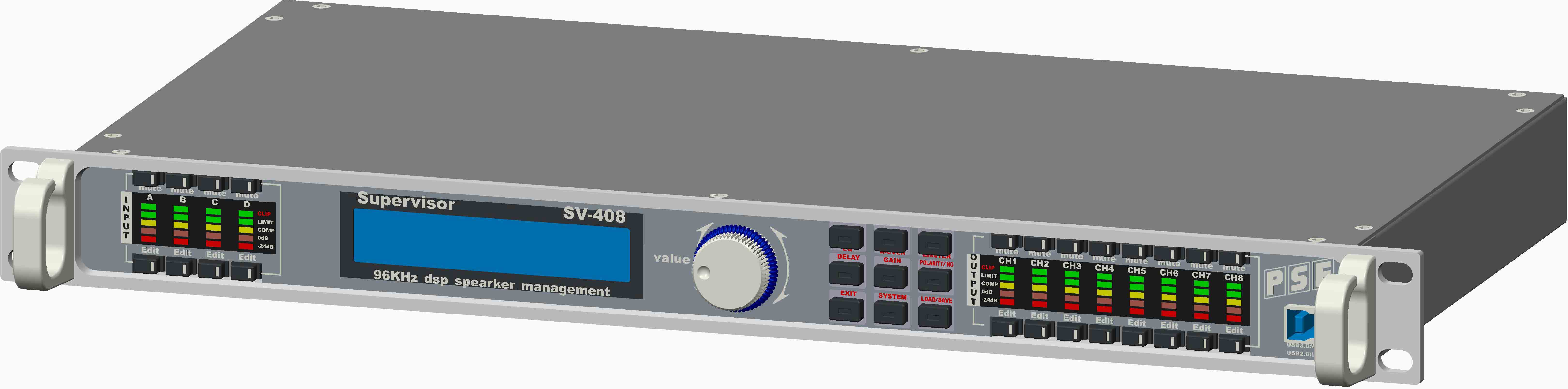

SV-408 >>>> 4 In - 8 out

technical specification
saple rate 96kHz
processing 32bit
input impedance (balanced) 20kΩ
output impedance (balanced) 100Ω
CMRR (common mode rejection) >80dB
max. Input level +25dBU
frequency response 20Hz to 20kHz
S/N R ≥100 dB (1kHz/0dB signal level)
THD ˂0.002% (1kHz/0dB signal level)
crosstalk >89dB
AC-Voltage *switchable 110V*/230V (50/60Hz)
max. power consumption 25W
dimesion (w/h/d) 19" / 1RU / 263mm
weight 4.5kg
