CX-series multifunction coaxial series

CX-series multifunction coaxial series


coaxial series CX-12          coaxial series CX-12

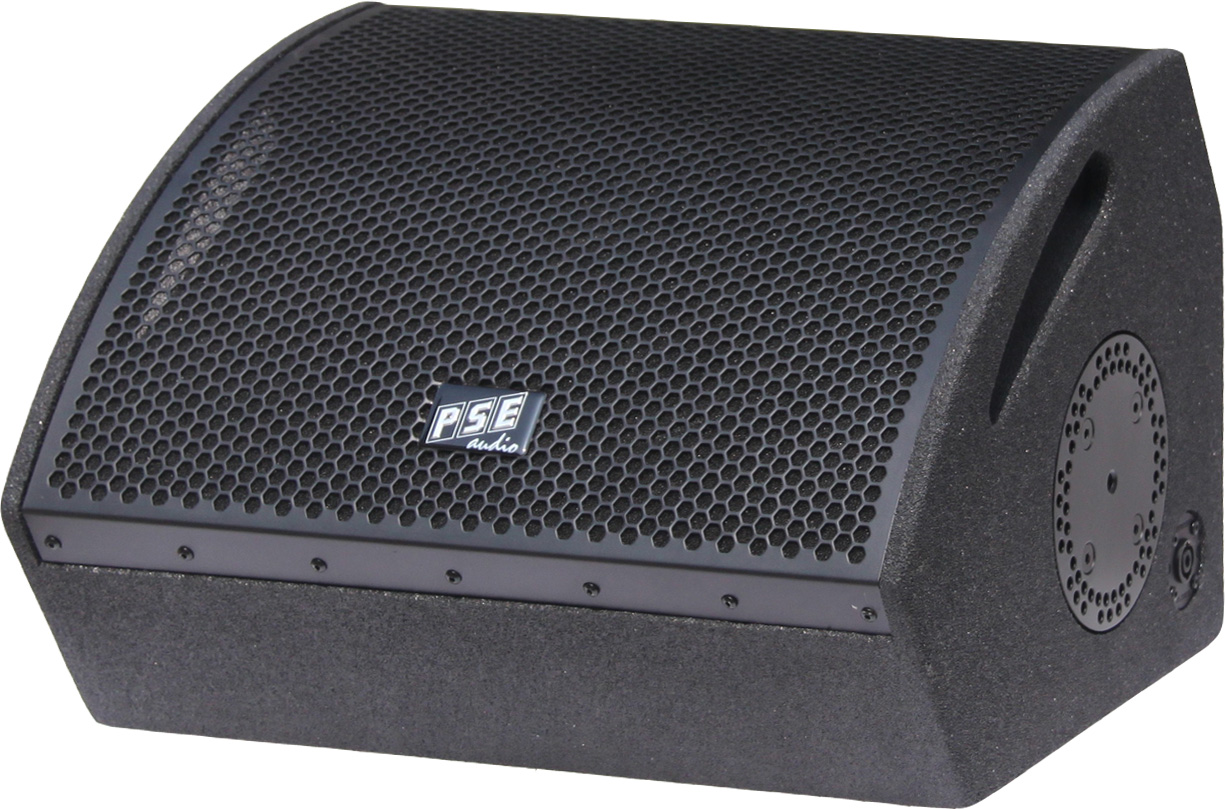

CX-12 general description

Features CX-12

  • 1x12"/1.75" coaxial speaker
  • 12" transducer 76mm /3" voice coil
  • 12" transducer ferrite magnet
  • compression driver 1.75"/45mm voice coil
  • compression driver ferrite magnet
  • high frequency horn 1" throat
  • horn directivity 50° x 70°
  • multifunction housing
  • wedge angle 30° and 60°
  • 2 M10 mounting points
  • 2 multi gauge plate 360° / 5° steps
  • tripod (pole mounting) flange
  • 4 Neutrik speakon 4-pin
  • speakon terminals at 3 sides of the cabinet
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application CX-12

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance CX-12

  • high-mid unit for fix installation
  • floor monitor
  • near fill
  • delay line


coaxial series CX-12

CX-12 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 500W / 1500W*
available frequency response** 60Hz-20kHz
max. sound pressure level*** 132dB
directivity (h x v) 50° x 70°
LF-transducer rated size 12"
LF-transducer voice coil diameter 76mm/3"
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 45mm/1.75"
HF-compression throat diameter 1"
HF-compression magnet structure ferrite
dimension h/w/d in mm 500/400/366
weight 22kg

* peak 10ms, with TD-8000 amplifier and CX-12 max controller setup
** -10dB with CX-12 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and CX-12 SPL controller setup

small variety of a wide range for bass cabinet extension

Bass SB-15
Disco and Pub

Bass LB-3
Live-music and Touring

Bass B-18
Touring and Installation
