ELITE-602

ELITE ELITE-602          ELITE ELITE-602

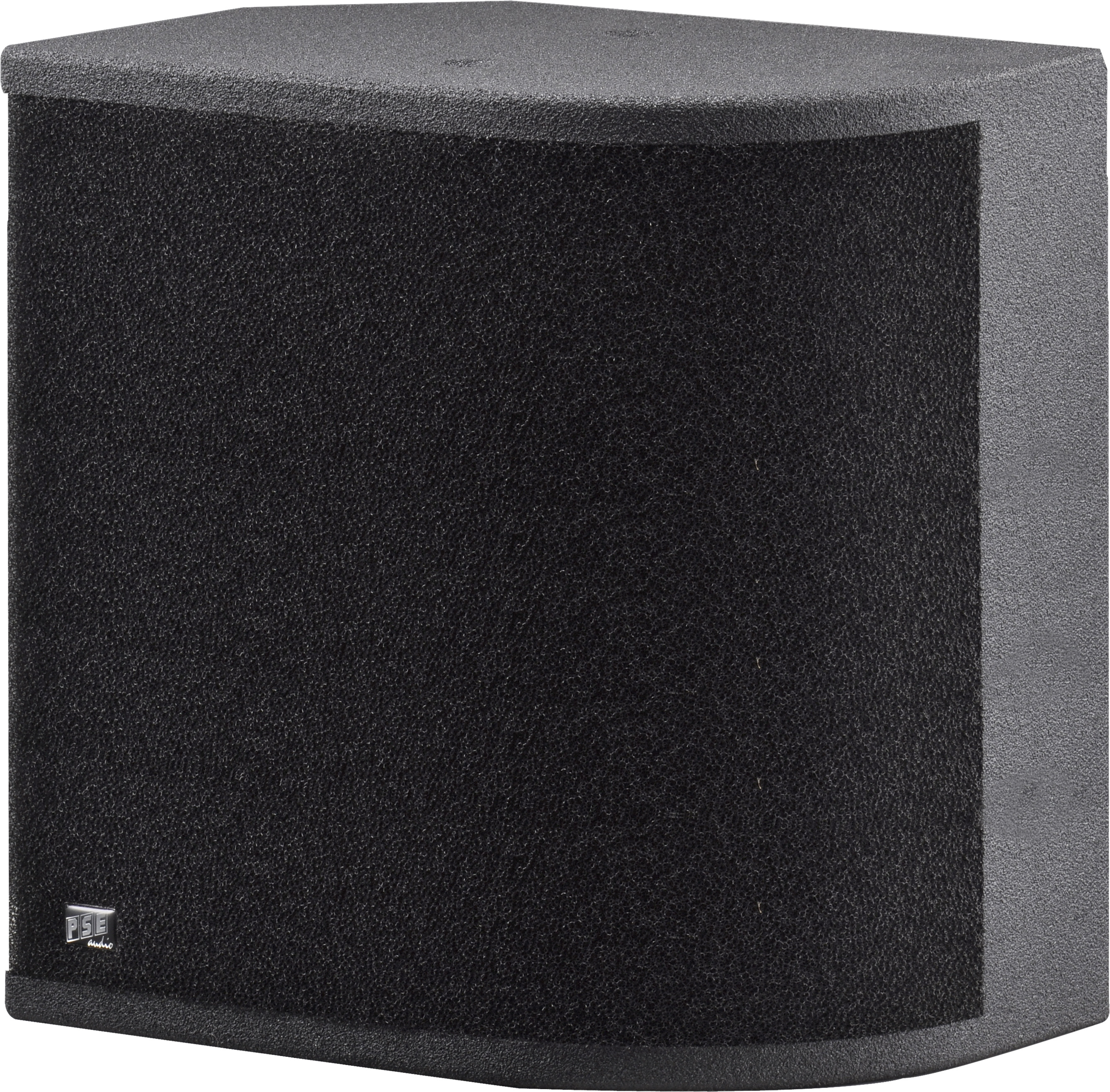

ELITE-602 general description

The ELITE 602 is a high quality powerful speaker cabinet with excellent HiFi sound performance. To make the sound outstanding with forceful subsonic bass there is a subwoofer recommended .

The ELITE 602 has an absolute unique housing design and transducer concept. The ELITE 602 is equipped with two 6.5” specially designed PSE-audio midrange speakers with high sensitivity and sound pressure for excellent performance of the midrange frequency response.

For extraordinary brilliant high fidelity high frequencies PSE-audio has designed a unique and patented tweeter. The tweeter has a 43mm dome for brilliant and high resolution treble like best HiFi sound. The magnet structure is neodymium for high magnet strength and high sensitivity. The tweeter has a design integrated radial horn to increase the SPL and provide a constant directivity.

This unique PSE-audio tweeter combines in a perfect way HiFi sound quality with PA sound pressure. The housing design is unique as well and provides a lot of convenient and unexpected installation option. Beyond that the ELITE-series housing design is very esthetic and unique.

The ELITE 602 is equipped with an advanced wall mounting bracket and can be fixed even to the wall without any distance. The bracket is integrated in the back panel of the cabinet and can´t be recognized from the front or side view. This installation option is unique and looks amazing together with the modern and fashion style cabinet design. There are more brackets available like “knee joint”, adapter plates and tripod adapter to give the customers the most flexibility for mounting and using the advanced ELITE 602.

The standard using of the ELITE 602 is horizontal while the cabinet can also be used 90° turned and upright. The PSE-audio logo is rotatable. There is a left and right version of ELITE 602 available. By the left version the transducer pair (6.5” speaker and tweeter) on the left side is cross facing 40° by the right version the transducer pair on the right side is cross facing 40°.

The ELITE 602 is suitable for many applications especially in combination with a subwoofer. Typical usage is for Bars, Pups, Karaoke, Hotels, Restaurants, Presentations, Conference rooms, Shopping malls, Retailer shops, home-cinema, powerful home-HiFi and so on.

The ELITE-series is the best choice for people who are looking for some extraordinary product with modern and fashion style, beyond that with brilliant clear and powerful audio performance.



ELITE ELITE-602

ELITE-602 specification
rated impedance (optional) 8Ω (4Ω, 16Ω)
operation mode passive
power handling capacity passive AES/peak* 300W / 900W*
available frequency response** 80Hz-18kHz
max. sound pressure level*** 122dB
directivity (h x v) 150°/90°
LF-transducer rated size 2 x 6.5"
LF-transducer voice coil diameter 1.35" (35mm)
LF-transducer magnet structure ferrite
HF-tweeter rated size 2 x 1.75"
HF-tweeter voice coil diameter 1.75" (43mm)
HF-tweeter magnet structure neodymium
black PU high strength structural coating standard
structural traditional painting (different colors) optional coating²
piano mirror painting (different colors) optional coating³
front covering 10mm acoustic foam
housing 15mm MDF 1.class
dimension h/w/d in mm 371/423/275
weight 15kg

* peak 10ms, with TD-8000 amplifier and ELITE-602 max controller setup
** -10dB with ELITE-602 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and ELITE-602SPL controller setup
