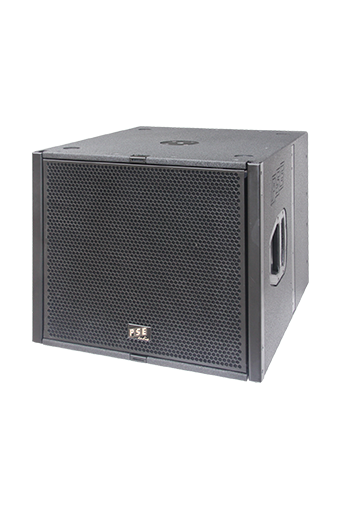

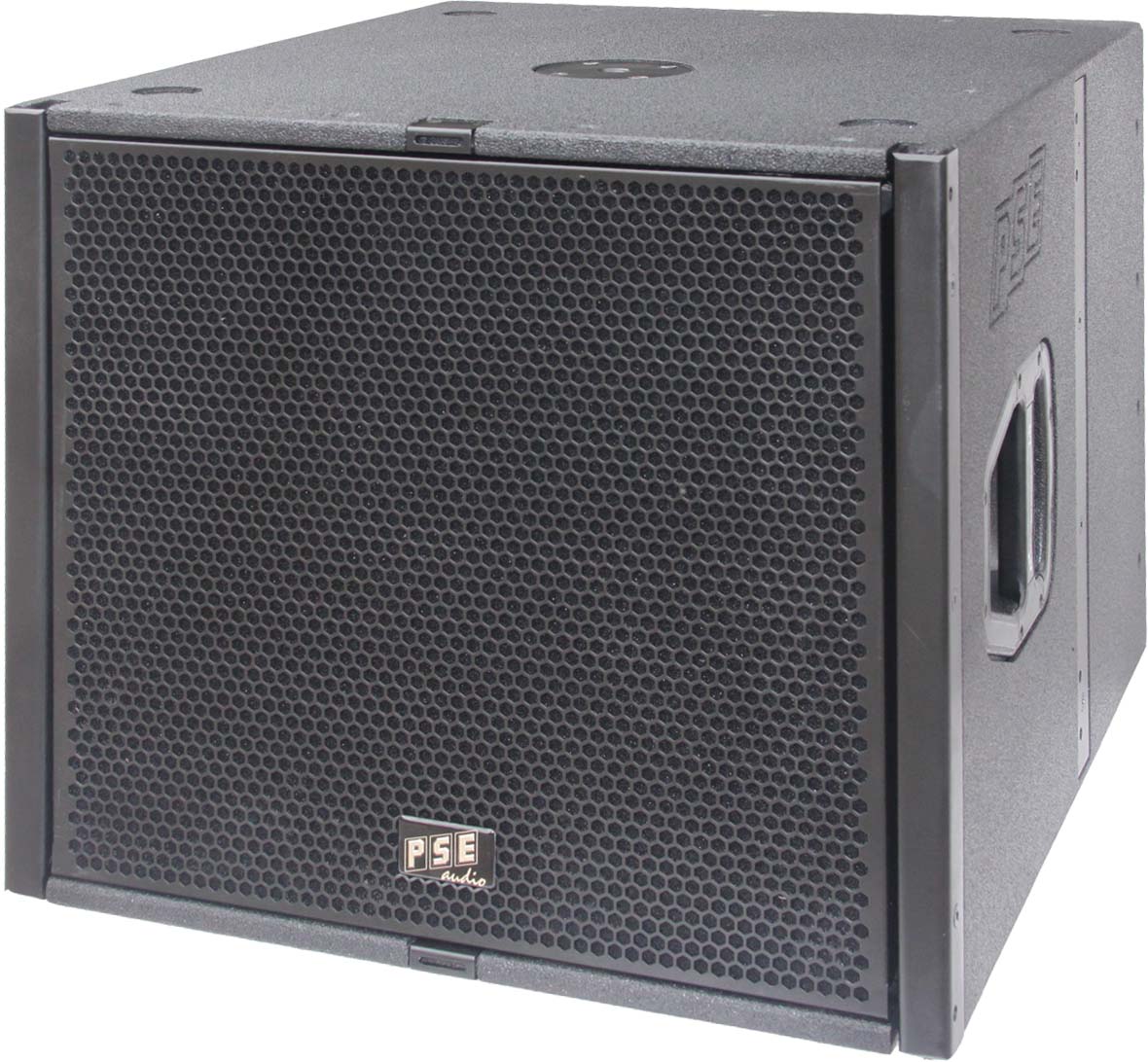

basssub LB-3



basssub LB-3          basssub LB-3

LB-3 general description

Features LB-3

  • 18" neodymium speaker (5"/125mm voice coil)
  • bass reflex design
  • rigging (flying) hardware integrated
  • M20 pole mount plate
  • 4 steering caster on the back side
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white
  • optional without wheels
  • optional front board with butterfly locks
  • optional detto. with 4 steering caster


basssub LB-3

LB-3 specification
rated impedance (optional) 8Ω (16Ω)
power handling capacity AES/peak* 1500W / 4500W*
available frequency response** 35Hz-180Hz
max. sound pressure level*** 137dB
LF-transducer rated size 18"
LF-transducer voice coil diameter 5"/125mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 580/500/660
weight 46kg

* peak 10ms, with TD-8000 amplifier and LB-3 max controller setup
** -10dB with LB-3 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and LB-3 SPL controller setup
