ecoline EL-15

EL -series satellite and fullrange series

EL-15

ecoline EL-15          ecoline EL-15

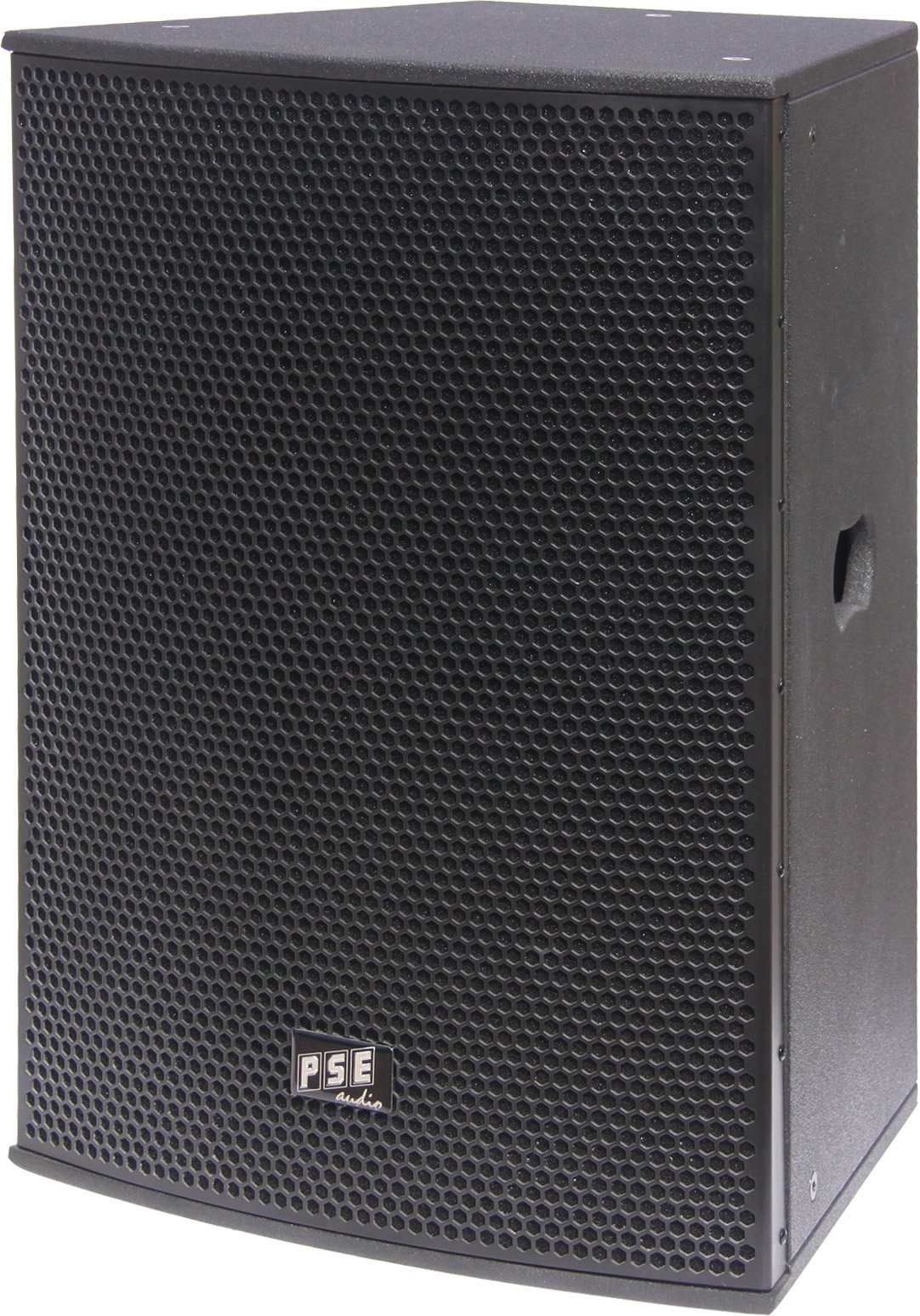

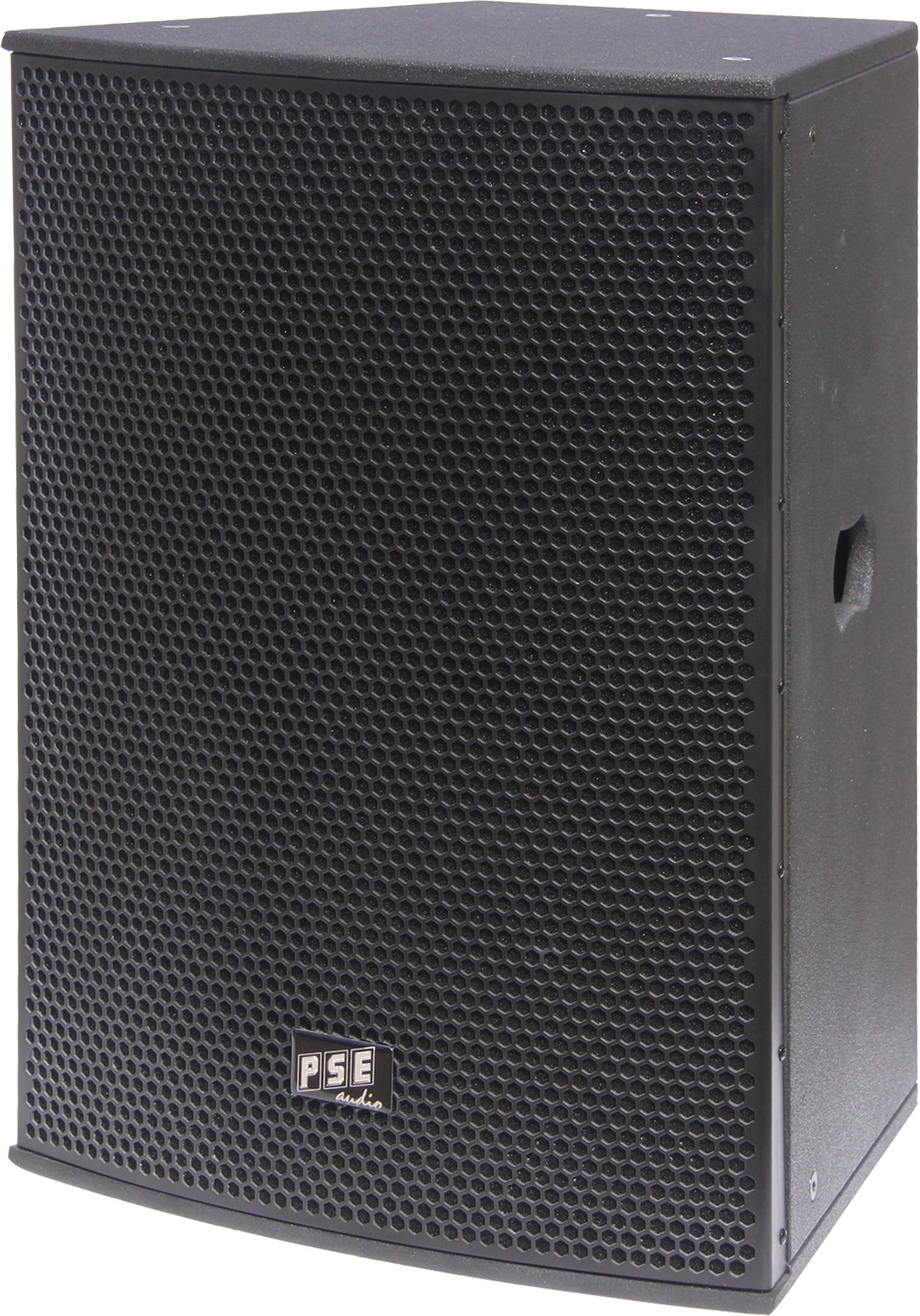

EL-15 general description

Features EL-15

  • 15" speaker ferrite (3"/76mm voice coil)
  • 1x1.75" (45mm) compression driver ferrite
  • high frequency horn 1" throat
  • horn directivity h90°/v60°
  • 90° turnable high frequency horn to v60°/h90°
  • trapezoid housing
  • tripod (pole mount) flange
  • 12 M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing class A MDF 15mm
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Application EL-15

  • discotheque, clubs, bars, entertainment,
  • meeting room

Appliance EL-15

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • background music
  • delay line





ecoline EL-15

EL-15 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 500W / 1500W*
available frequency response** 55Hz-18kHz
max. sound pressure level*** 132dB
directivity (h x v) 90°/60° (90°rotatable)
LF-transducer rated size 15"
LF-transducer voice coil diameter 76mm/3"
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 45mm/1.75"
HF-compression throat diameter 1"
HF-compression magnet structure ferrite
dimension h/w/d in mm 630/460/360
weight 25kg

* peak 10ms, with TD-8000 amplifier and EL-15 max controller setup
** -10dB with EL-15 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and EL-15 SPL controller setup

small variety of a wide range for bass cabinet extension
