LB-118

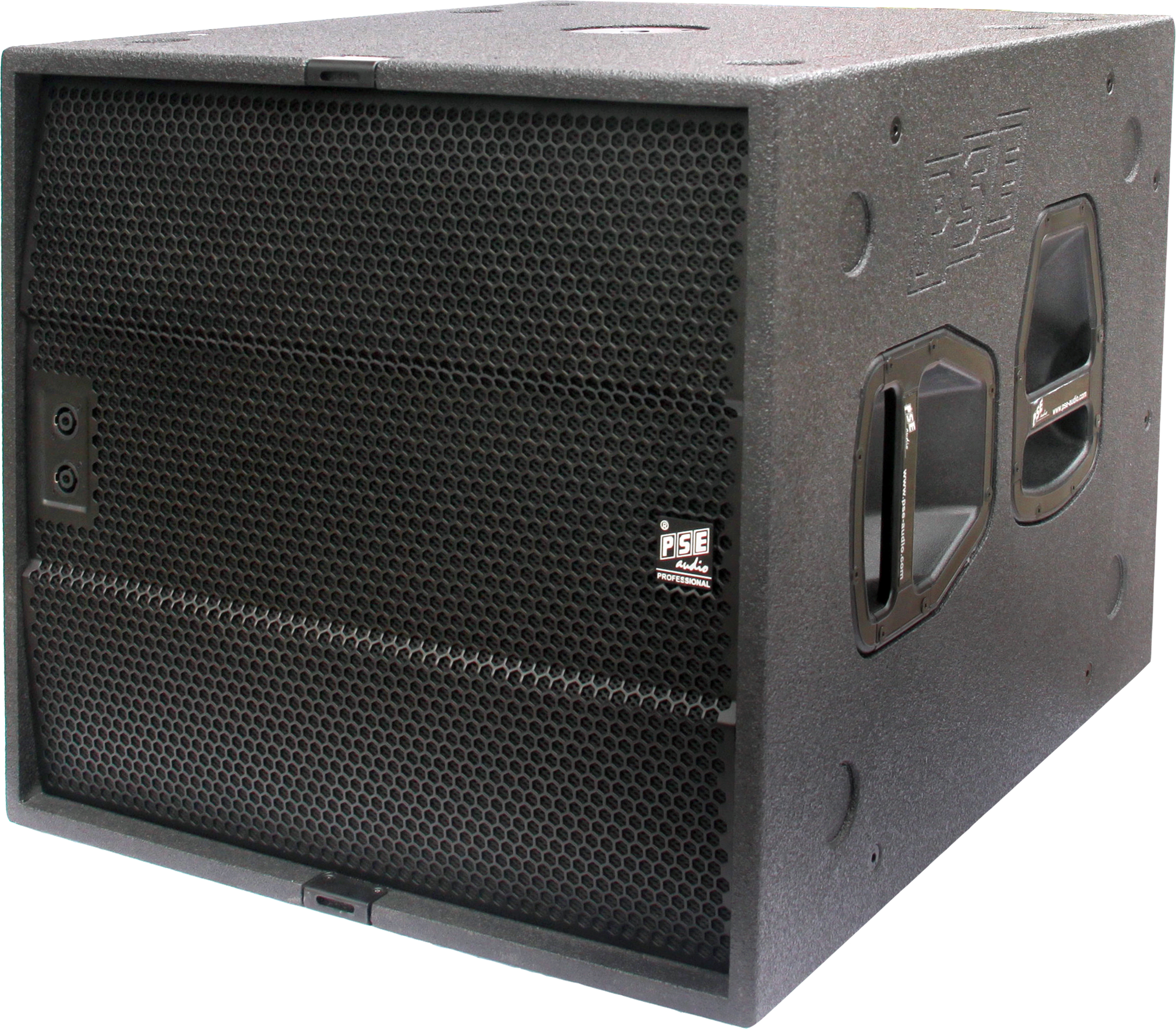

basssub LB-118

LB-118 general description

Features LB-118

  • 15" neodymium speaker (4"/100mm voice coil)
  • carbone cone
  • bass reflex design
  • rigging (flying) hardware integrated
  • 4 caster dish in the back
  • M20 pole mount plate
  • 2 Neutrik speakon 4-pin regular
  • 2 additional hidden Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic fabric behind front grill
  • 4 x rubber feet
  • stackable
  • plywood wood housing
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

basssub LB-118

Compact and light weighted LB-118, a single 18” subwoofer, is staunch with enormous power and extremely high dynamic sound performance.

The elaborately developed transducer adopts the exquisite carbon fiber cone. The carbon fiber cone has trailblazing advantages compared with widely used paper ones in terms of material characteristics and physical function. Carbon fiber is stable, anti-entangling even by maximum displacement, tear-resistant, impervious to high air moisture due to its steady material properties.

The voice coil has a big diameter of 6” (125mm), to guarantee the higher power handling capacity & SPL. The magnet of the transducer applies the multi cellular neodymium magnet technology. With this structure the transducer provides a huge magnetic force at minimum weight.

Considering the most convenient and flexible operation on site, LB-118 provides a lot of useful features like cardioid application, caster dishes in the rear panel, M8 fixing points, additional innovative connection options and a M20 pole mount plate.

LB-118 specification
rated impedance (optional) 8Ω (16Ω)
power handling capacity AES/peak* 1500W / 4500W*
available frequency response** 35Hz-200Hz
max. sound pressure level*** 137dB
transducer rated size 18"
midrange-transducer voice coil Ø 5" (125mm)
transducer magnet structure neodymium
transducer cone material carbon fiber
dimension w/h/d in mm 580/500/660
weight 38kg

* peak 10ms, with TD-8000 amplifier and LB-118 max controller setup
** -10dB with LB-118 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and LB-118 SPL controller setup
