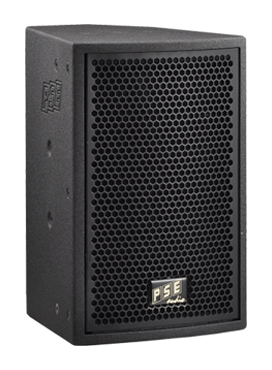

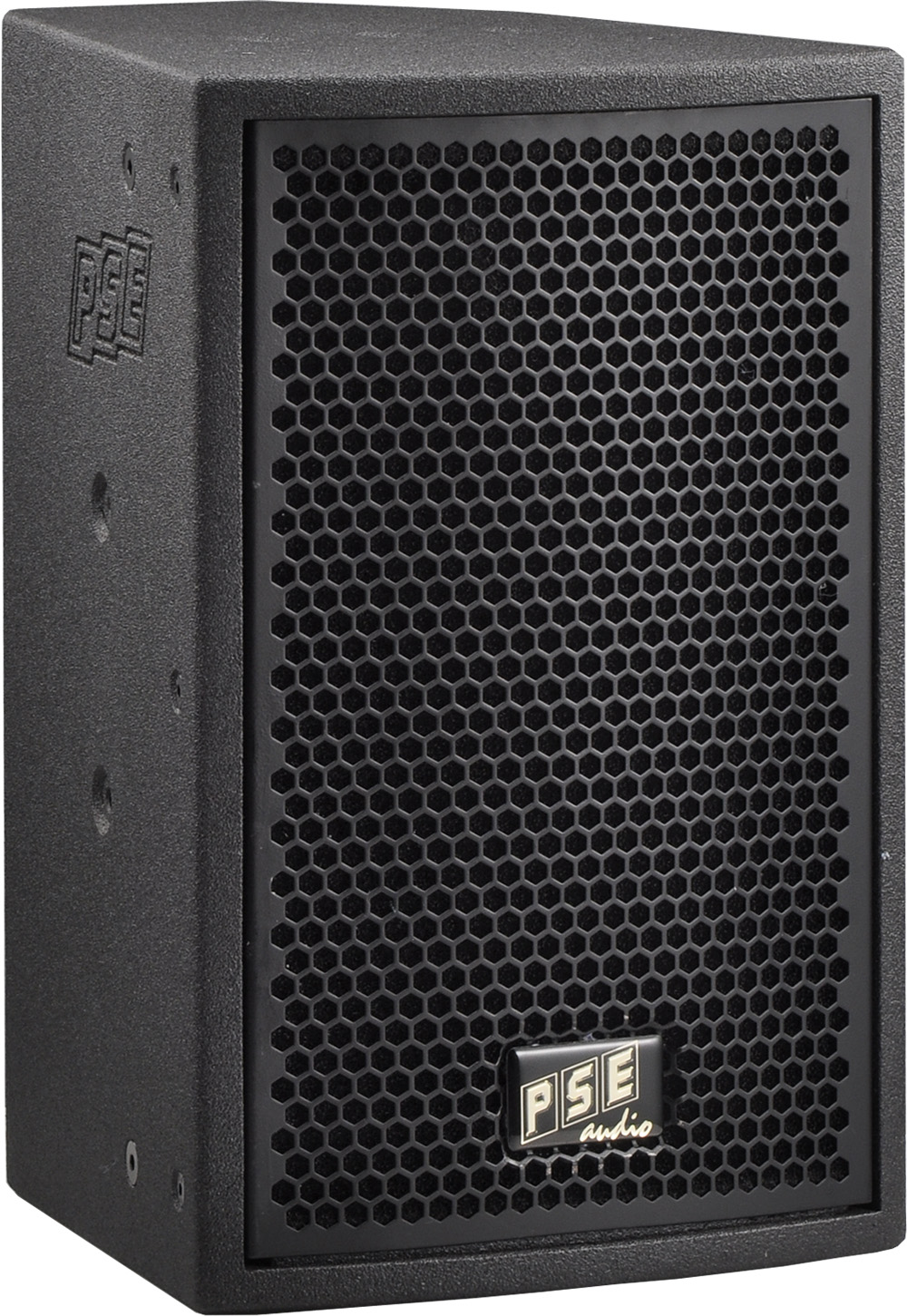

Galaxy series GS-8

Galaxy-series high end multifunction series


Galaxy series GS-8          Galaxy series GS-8
GS-8 general description

Features GS-8

  • 1x8" speaker neodymium (52mm voice coil)
  • 1x1.35" (34mm) compression driver ferrite
  • high frequency horn 1" throat
  • horn directivity h90°/v60°
  • 90° turnable high frequency horn to v60°/h90°
  • multifunction housing
  • wedge angle 45°
  • tripod (pole mounting) flange
  • 18 M8 mounting points
  • 1 M10 mounting point
  • 1 multi gauge plate 360° / 5° steps
  • 2 Neutrik speakon 4-pin for passive
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application GS-8

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance GS-8

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • floor monitor
  • delay line


Galaxy series GS-8

GS-8 specification
rated impedance 8 Ω
operation mode passiv
power handling capacity passive AES/peak* 300W / 900W*
available frequency response** 68Hz-20kHz
max. sound pressure level*** 127dB
directivity (h x v) 90°/60° (90°rotatable)
LF-transducer rated sice 8"
LF-transducer voice coil diameter 52mm/2"
LF-transducer magnet structure neodymium
HF-compression driver rated sice (VC) 34mm/1,35"
HF-compression throat diameter 1"
HF-compression magnet structure Ferrit
dimension h/w/d in mm 416/275/250
weight 9,9kg

* peak 10ms, with TD-8000 amplifier and GS-8 max controller setup
** -10dB with GS-8 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GS-8 SPL controller setup
