EL -series satellite and fullrange series

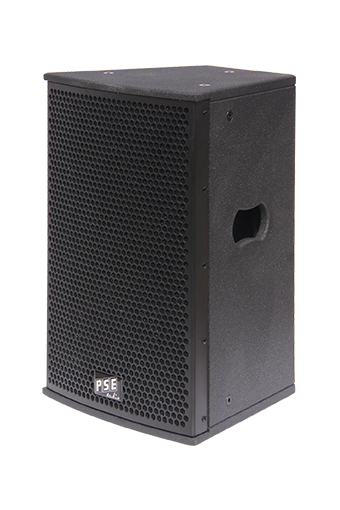

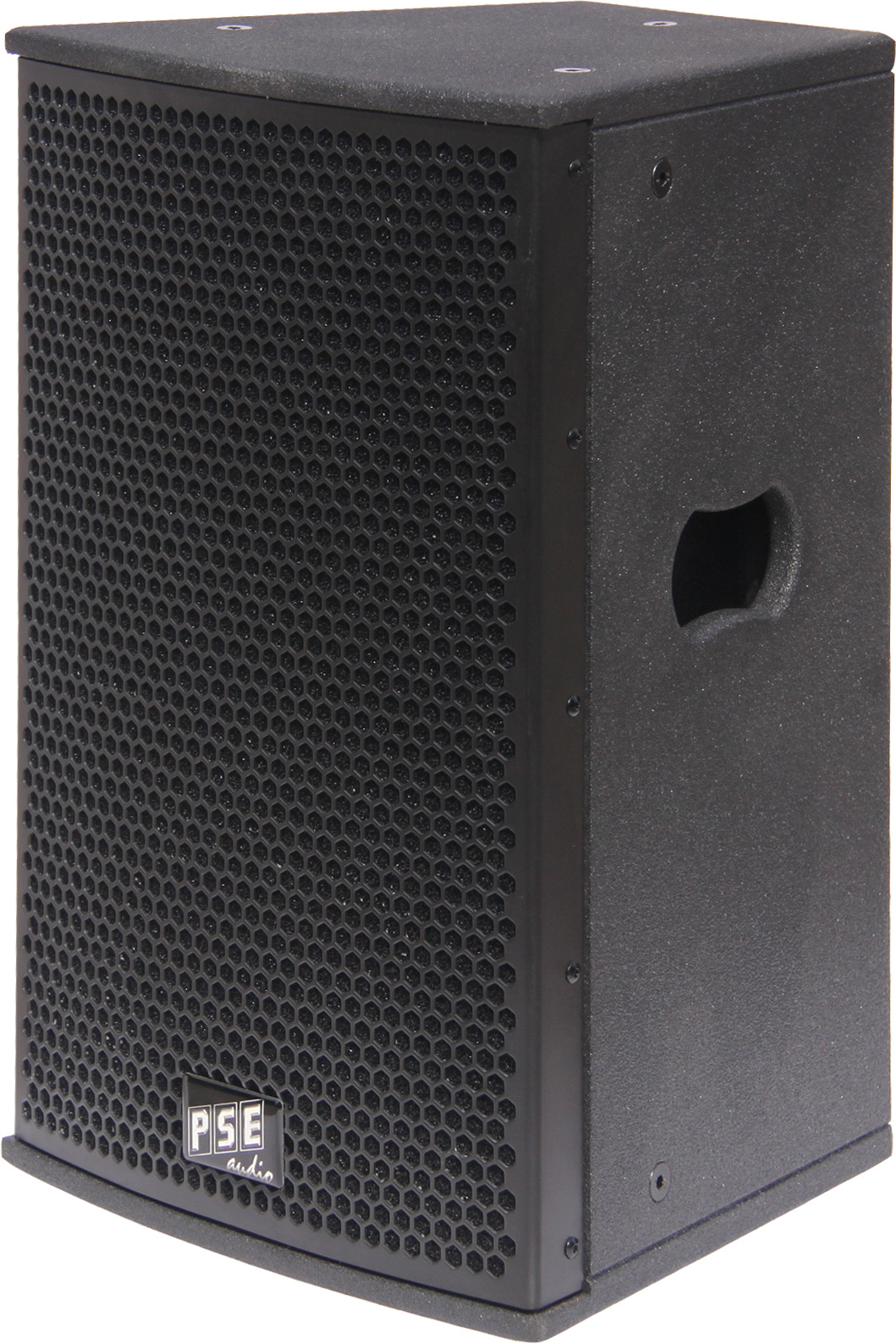

EL-10
EL-10 general description
Features EL-10
- 10" speaker ferrite (2.5"/64mm voice coil)
- 1x1.35" (34mm) compression driver ferrite
- high frequency horn 1" throat
- horn directivity h90°/v60°
- 90° turnable high frequency horn to v60°/h90°
- trapezoid housing
- tripod (pole mount) flange
- 12 M8 mounting points
- 2 Neutrik speakon 4-pin
- bass link function
- high-mid link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- wood housing class A MDF 15mm
- polyurea (PU) high scratch proof coating
- optional regular painting black or white
Application EL-10
- discotheque, clubs, bars, entertainment,
- meeting room
Appliance EL-10
- high-mid unit for fix installation
- high-mid unit for mobile PA
- fullrange PA cabinet
- background music
- delay line
EL-10 specification
| rated impedance | 8 Ω |
| operation mode | passive |
| power handling capacity passive AES/peak* | 400W / 1200W* |
| available frequency response** | 70Hz-20kHz |
| max. sound pressure level*** | 128dB |
| directivity (h x v) | 90°/60° (90°rotatable) |
| LF-transducer rated size | 10" |
| LF-transducer voice coil diameter | 64mm/2.5" |
| LF-transducer magnet structure | ferrite |
| HF-compression driver rated size (VC) | 34mm/1.35" |
| HF-compression throat diameter | 1" |
| HF-compression magnet structure | ferrite |
| dimension h/w/d in mm | 474/320/270 |
| weight | 15kg |
* peak 10ms, with TD-8000 amplifier and EL-10 max controller setup |
|
