linearray VT-6

Line Array speaker cabinet


linearray VT-6          linearray VT-6

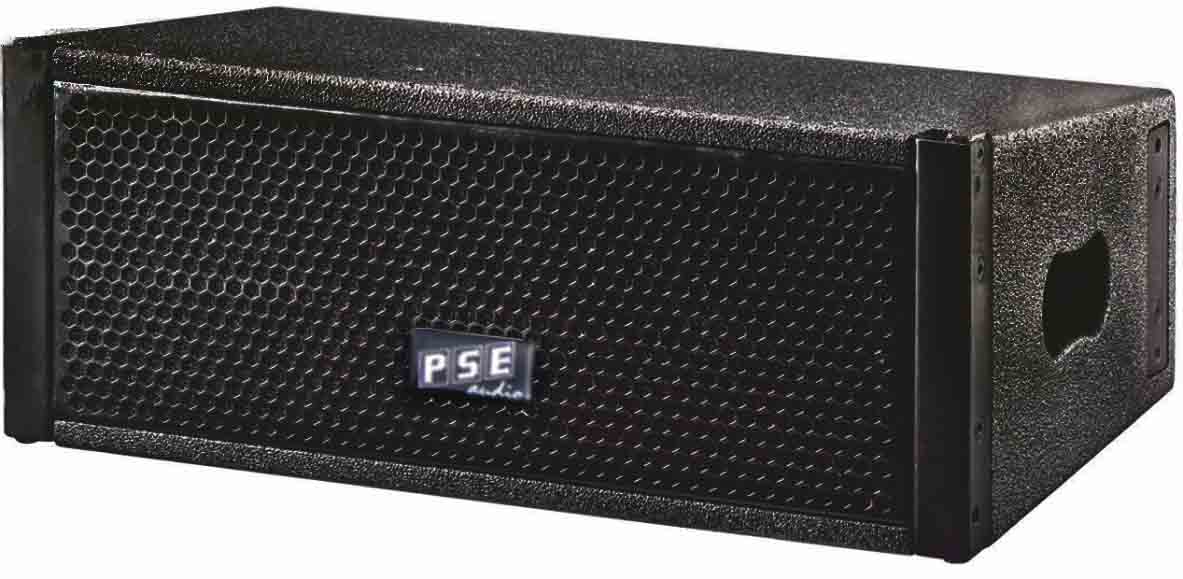

VT-6 general description

Features VT-6

  • 2x6.5" speaker ferrite (1.35"voice coil)
  • 1x1.75" (45mm) compression driver ferrite
  • high frequency planar wave guide horn
  • wave guide horn directivity h90°/v10°
  • constant horn directivity
  • curving angles 0°-10° in 1° steps
  • 4-point rigging structure
  • 2 Neutrik speakon 4-pin
  • speaker signal link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing 15mm and 18mm plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Appliance VT-6

  • line array unit for mobile and touring PA
  • line array unit for fix installation

Application VT-6

  • live events, live entertainment
  • stadium broadcasting,
  • discotheque and mobile disco event
  • meeting halls broadcast system

extended system components

  • LB-15 MK-II* Low-Mid extension (1x15")
  • B-18 RV* 18" subwoofer (1x18")
  • B-18 subwoofer (1x18")
  • VB-218 subwoofer (2x18")
    *with rigging hardware

linearray VT-6

linearray VT-6

linearray VT-6

linearray VT-6

linearray VT-6

linearray VT-6

VT-6 specification
rated impedance (optional) 16Ω (8Ω)
operation mode passive
power handling capacity passive AES/peak* 300W / 900W*
available frequency response** 80Hz-20kHz
max. sound pressure level*** 129dB
directivity h x v**** 90°x10°
LF-transducer rated size 2x6.5"
LF-transducer voice coil diameter 1.35"/35mm
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 1.75"/45mm
HF-compression driver throat diameter 1"
HF-compression magnet structure ferrite
dimension w/h/d in mm 530/210/300
weight 16kg

* peak 10ms, with TD-8000 amplifier and VT-6 max controller setup
** -10dB with VT-6 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and VT-6 SPL controller setup
****system vertical directivity depends on quantity and curving of VT-6 cabinets

small variety of a wide range for bass cabinet extension

Bass VB-218


Bass LB-15MK-II


Bass B-18
