Line Array speaker cabinet

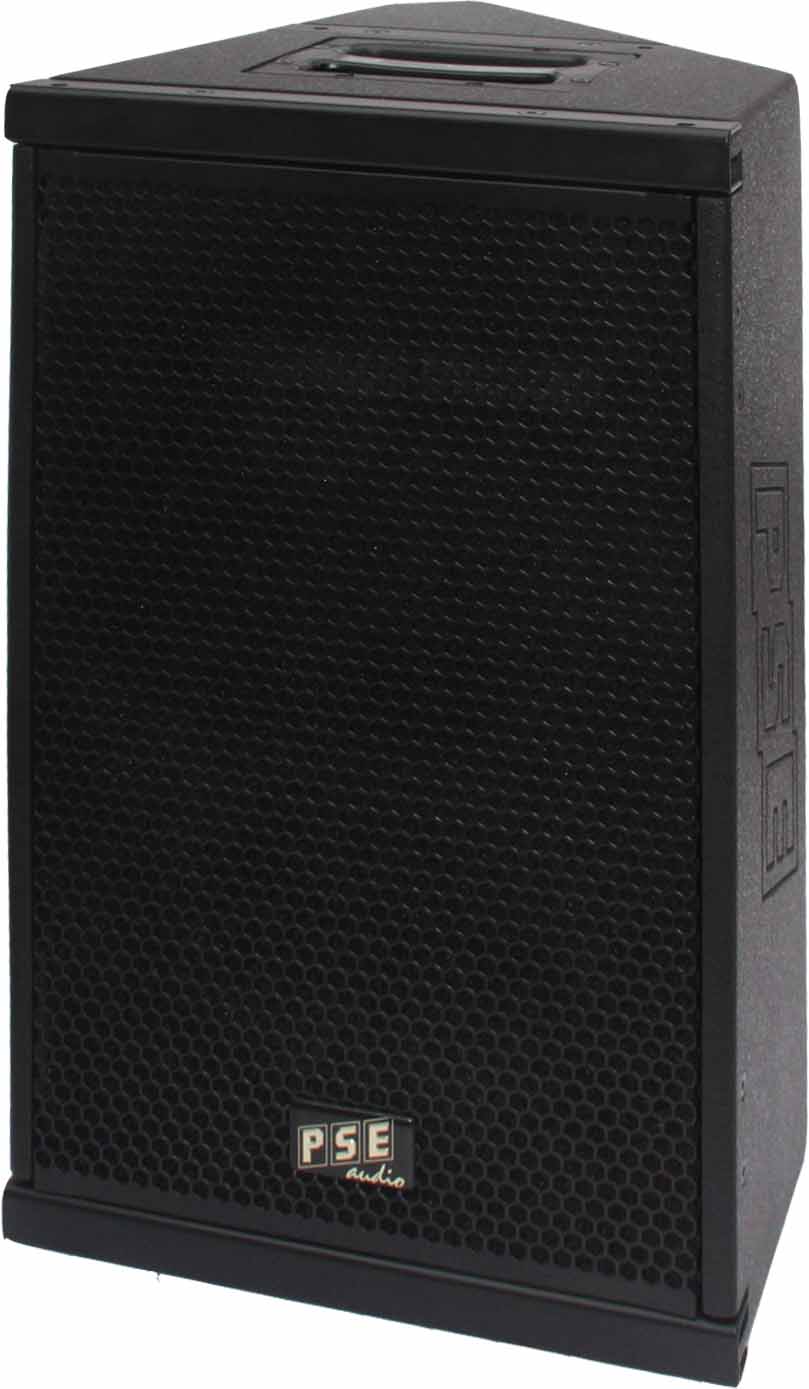

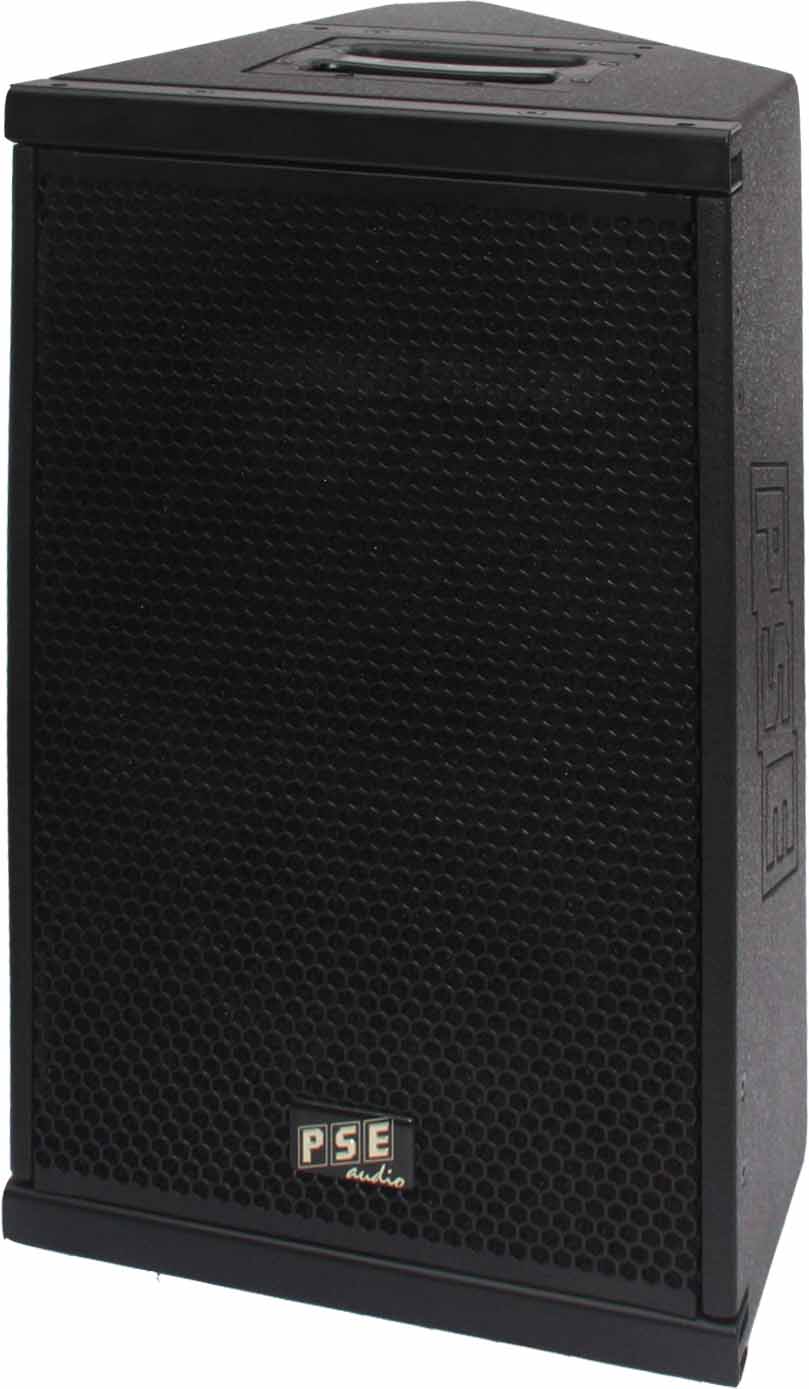

Viper-S
Viper-S general description
Features Viper-S
- 1x12"/3" coaxial speaker neodymium
- 12" transducer 76mm /3" voice coil
- 12" transducer neodymium magnet
- compression driver 1.75"/45mm voice coil
- compression driver neodymium magnet
- horn directivity 60° x 40°
- multifunction housing
- wedge angle 45°
- tripod (pole mounting) flange
- 2 Neutrik speakon 4-pin
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- wood housing plywood 15mm
- polyurea (PU) high scratch proof coating
Appliance Viper-S
- high-mid unit (satellite)
- fullrange cabinet
- down fill LA-3 Line Array
- floor monitor
- near fill
- delay line
Application Viper-S
- live events, live entertainment
Viper-S specification
| rated impedance | 8 Ω |
| operation mode | bi-amp |
| power handling capacity bi-amp AES LF+HF | 450W + 50W |
| power handling capacity bi-amp peak* LF+HF | 1800W + 200W |
| available frequency response** | 58Hz-20kHz |
| max. sound pressure level*** | 135dB |
| directivity horn (h x v) | 60° x 40° |
| LF-transducer rated size | 12" |
| LF-transducer voice coil diameter | 3" (76mm) |
| LF-transducer magnet structure | neodymium |
| HF-compression driver rated size (VC) | 1.75" (45mm) |
| HF-compression throat diameter | 1" |
| HF-compression magnet structure | neodymium |
| dimension w/h/d in mm | 580/350/435 |
| weight | 16kg |
* peak 10ms, with TD-8000 amplifier and Viper S max controller setup |
|
