CX-series multifunction coaxial series

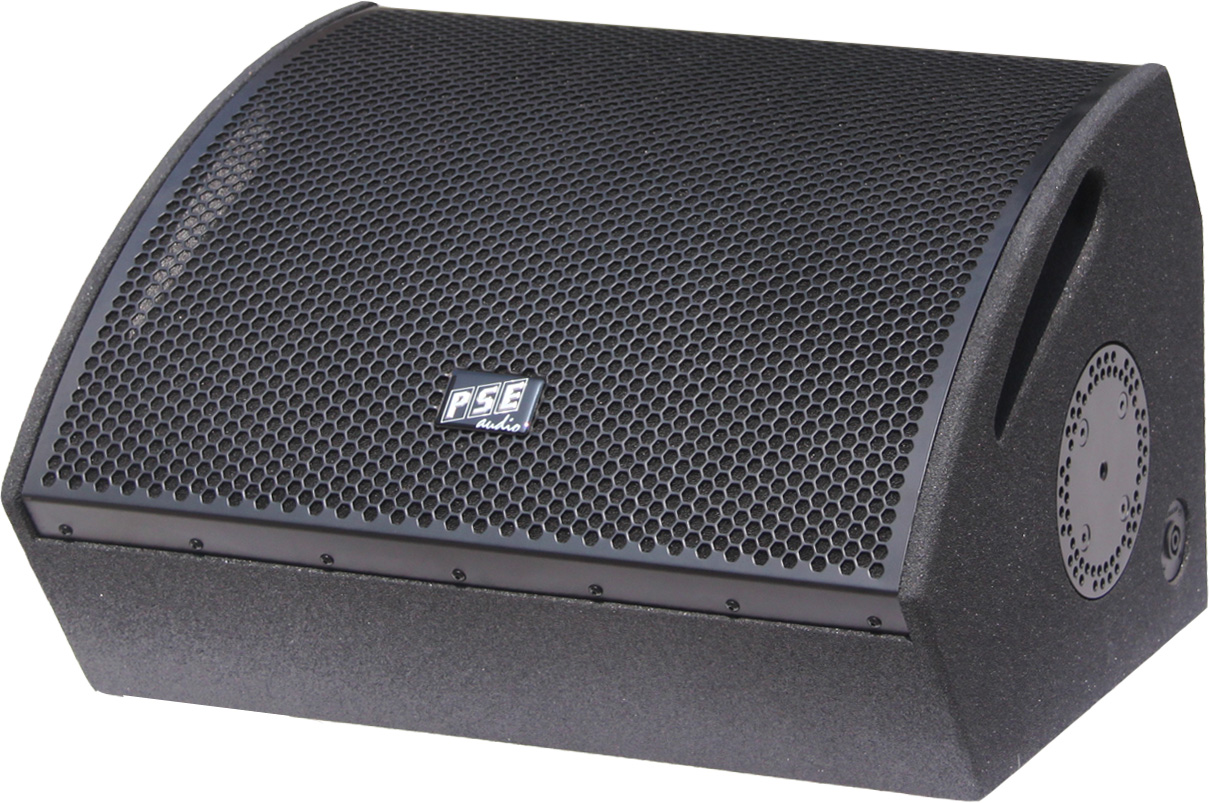

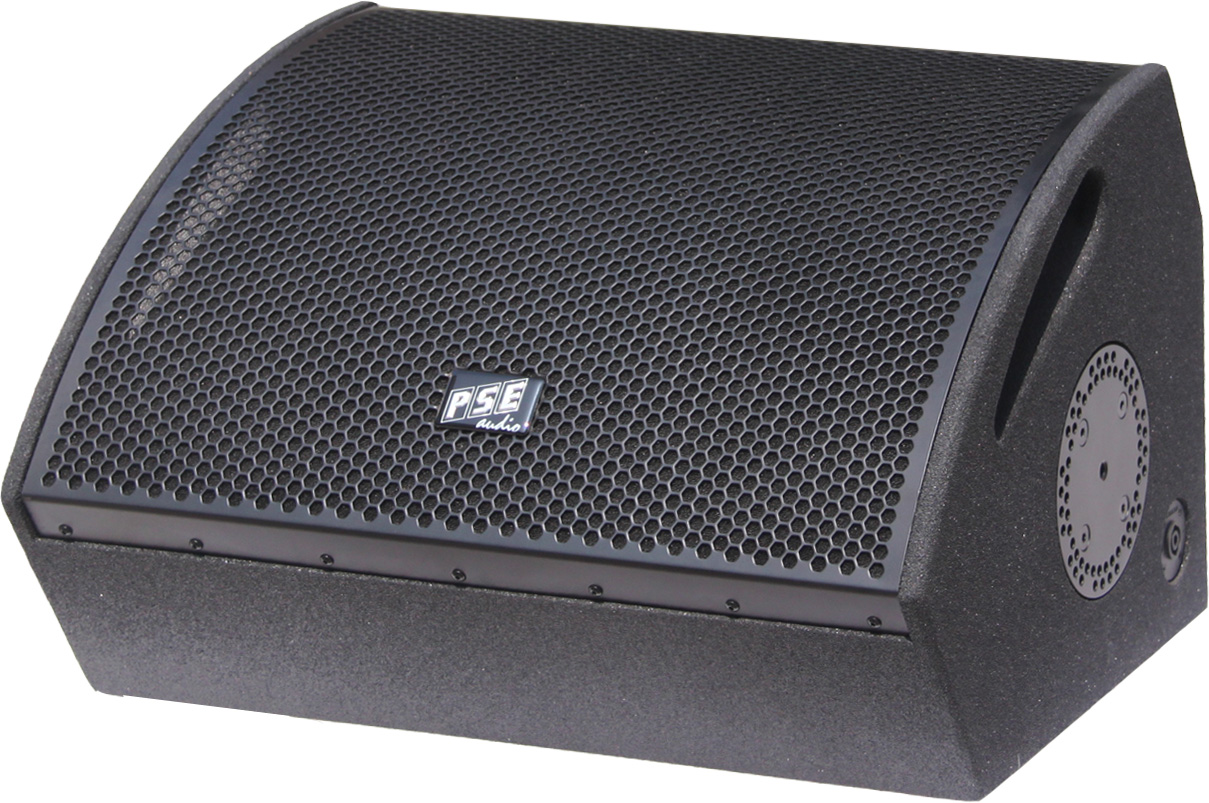

CX-15pro
CX-15pro general description
Features CX-15pro
- 1x15"/3" coaxial speaker neodymium
- 15" transducer 76mm /3" voice coil
- 15" transducer neodymium magnet
- compression driver 3"/75mm voice coil
- compression driver neodymium magnet
- high frequency horn 1.4" throat horn directivity 40° x 60°
- multifunction housing
- wedge angle 30° and 60°
- 2 M10 mounting points
- 2 multi gauge plate 360° / 5° steps
- tripod (pole mounting) flange
- 4 Neutrik speakon 4-pin
- speakon terminals at 3 sides of the cabinet
- bass link function
- high-mid link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- wood housing plywood 15mm
- polyurea (PU) high scratch proof coating
Application CX-15pro
- discotheque, clubs, bars, entertainment
- live events, live entertainment
Appliance CX-15pro
- high-mid unit for fix installation
- floor monitor
- near fill
- delay line
CX-15pro specification
| rated impedance | 8 Ω |
| operation mode | bi-amp |
| power handling capacity bi-amp AES LF+HF | 450W +70W |
| power handling capacity bi-amp peak* LF+HF | 1800W + 200W |
| available frequency response** | 50Hz-20kHz |
| max. sound pressure level*** | 139dB |
| directivity horn (h x v) | 40° x 60° |
| LF-transducer rated size | 15" |
| LF-transducer voice coil diameter | 76mm/3" |
| LF-transducer magnet structure | neodymium |
| HF-compression driver rated size (VC) | 75mm/3" |
| HF-compression throat diameter | 1.4" |
| HF-compression magnet structure | neodymium |
| dimension h/w/d in mm | 580/445/406 |
| weight | 20kg |
* peak 10ms, with TD-8000 amplifier and CX-15pro max controller setup |
|
