CX-series multifunction coaxial series

CX-series multifunction coaxial series


coaxial series CX-15          coaxial series CX-15

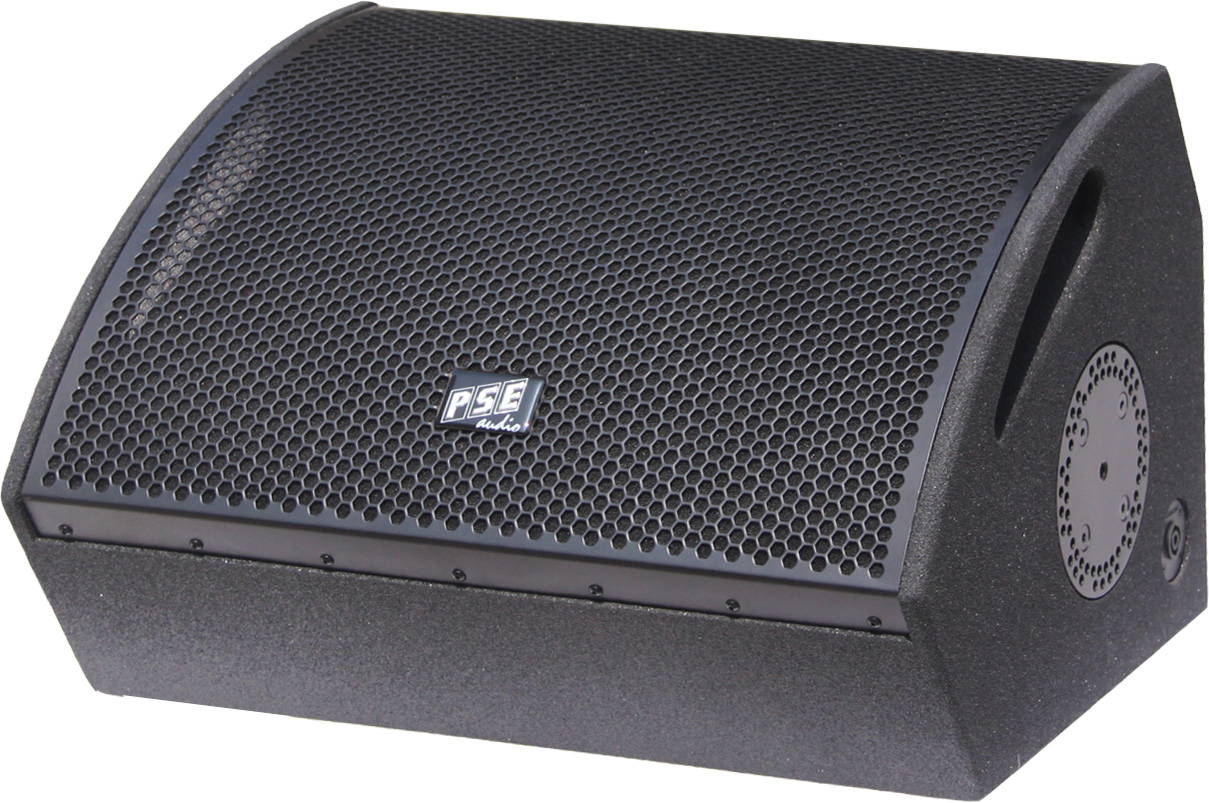

CX-15 general description

Features CX-15

  • 1x15"/1.75" coaxial speaker
  • 15" transducer 76mm /3" voice coil
  • 15" transducer ferrite magnet
  • compression driver 1.75"/45mm voice coil
  • compression driver ferrite magnet
  • high frequency horn 1" throat
  • horn directivity 50° x 70°
  • multifunction housing
  • wedge angle 30° and 60°
  • 2 M10 mounting points
  • 2 multi gauge plate 360° / 5° steps
  • tripod (pole mounting) flange
  • 4 Neutrik speakon 4-pin
  • speakon terminals at 3 sides of the cabinet
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application CX-15

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance CX-15

  • high-mid unit for fix installation
  • floor monitor
  • near fill
  • delay line


coaxial series CX-15

CX-15 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 800W / 2400W*
available frequency response** 50Hz-20kHz
max. sound pressure level*** 133dB
directivity (h x v) 50° x 70°
LF-transducer rated size 15"
LF-transducer voice coil diameter 76mm/3"
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 45mm/1.75"
HF-compression throat diameter 1"
HF-compression magnet structure ferrite
dimension h/w/d in mm 580/445/406
weight 25kg

* peak 10ms, with TD-8000 amplifier and CX-15 max controller setup
** -10dB with CX-15 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and CX-15 SPL controller setup

small variety of a wide range for bass cabinet extension

Bass SB-18
for fix installation

Bass LB-3
for live event

Bass B-18
for live and installation
