ELITE-804 general description

The ELITE 804 is the most powerful cabinet of the entire ELITE-series. The flagship ELITE 804 is equipped in total with four 8” specially designed PSE-audio midrange speakers and two unique and outstanding PSE-audio dome tweeter. The four 8” speakers guarantee high sensitivity and high sound pressure by excellent performance of the midrange frequency response. For extraordinary brilliant high fidelity high frequencies PSE-audio has designed a unique and patented tweeter. The tweeter has a 43mm dome for brilliant and high resolution treble like best HiFi sound.

The magnet structure is neodymium for high magnet strength and high sensitivity. The tweeter has a design integrated radial horn to increase the SPL and provide a constant directivity. This unique PSE-audio tweeter combines in a perfect way HiFi sound quality with PA sound pressure. One tweeter is assembled in the center of a line with 2 pcs. of the 8” midrange transducers and create a coaxial vertical line. The coaxial vertical line design of the ELITE 804 has a significant advantage especially by vertical usage of the cabinet. A same trio of transducers is equipped 40° cross facing to increase the horizontal coverage angle to 150°! The housing design is unique as well and provides a lot of convenient and unexpected installation option.

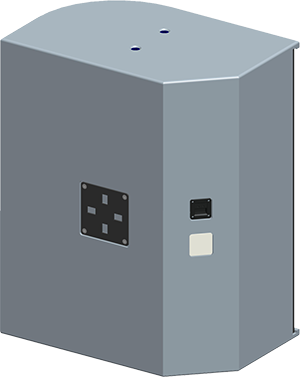

The ELITE 804 is equipped with an advanced wall mounting bracket and can be fixed even to the wall without any distance. The bracket is integrated in the back panel of the cabinet and can´t be recognized from the front or side view. This installation option is unique and looks amazing together with the modern and fashion style cabinet design. There are more brackets available like “knee joint” and adapter plates to give the customers the most flexibility for mounting and using the advanced ELITE 804. The standard coating is a high strength and high scratch-resistant black pure PU coating. Optional PSE-audio provides standard structure varnishing in many colors and shiny piano mirror painting is available as well in different colors.

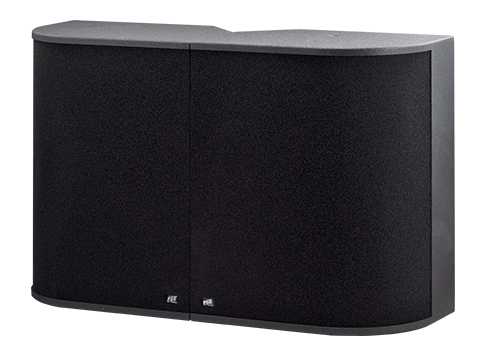

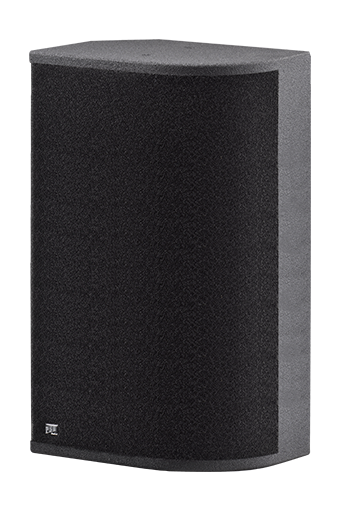

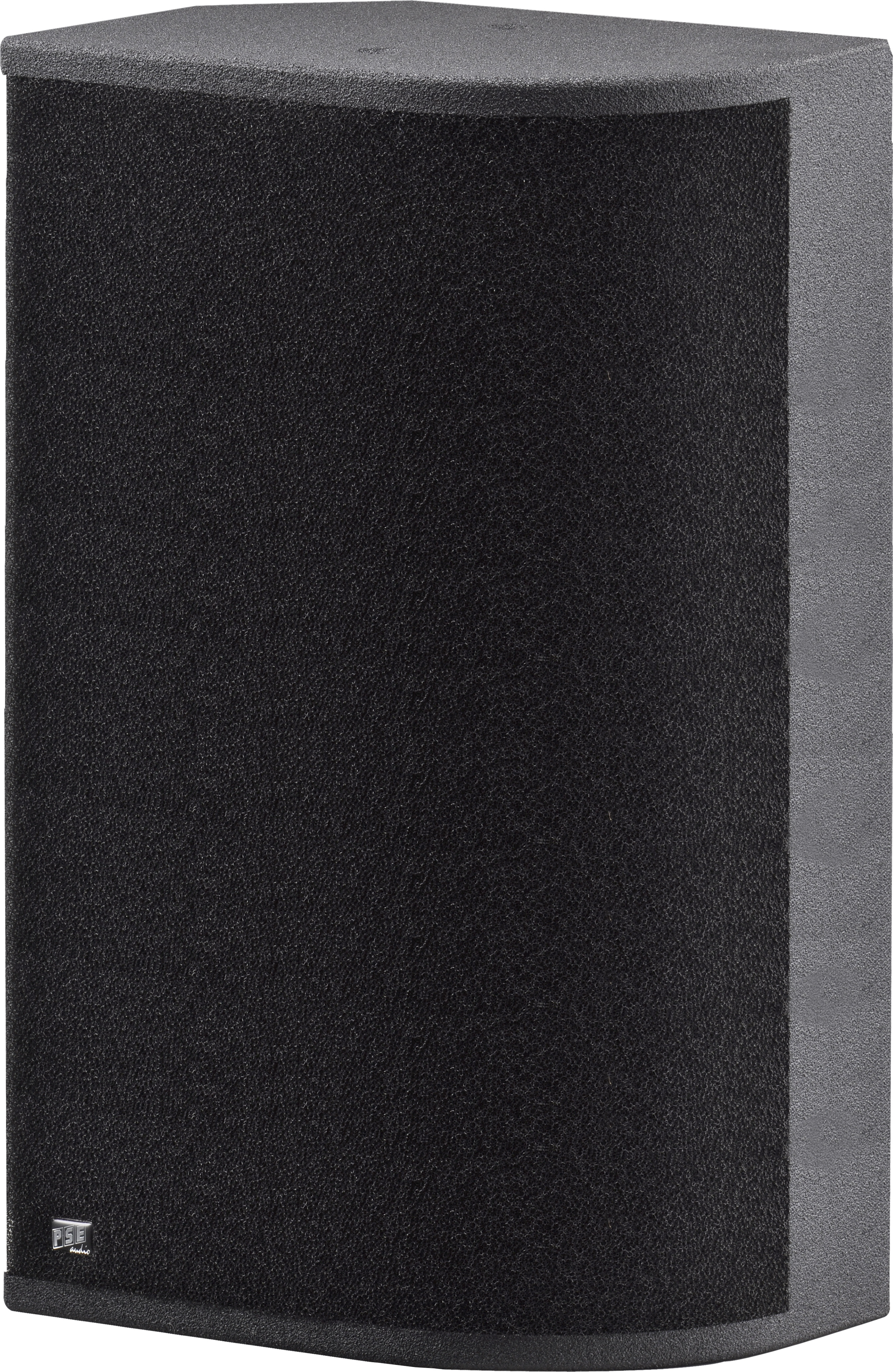

The standard using of the ELITE 804 is horizontal while the cabinet can also be used 90° turned and upright. The PSE-audio logo is rotatable. There is a left and right version of ELITE 804 available. By the left version the transducer trio (2 pcs. 8” speaker and one tweeter) on the left side is cross facing 40° by the right version the transducer trio on the right side is cross facing 40°.

The ELITE 804 is suitable for many applications especially in combination with a subwoofer. Typical usage is for Cinema, Bars, Pubs, Karaoke, Conference rooms, home-cinema, powerful home-HiFi and so on.

The ELITE-series design is very esthetic and unique. The ELITE-series is the best choice for people who are looking for some extraordinary product with modern and fashion style, beyond that with brilliant clear and powerful audio performance.



ELITE-804 specification
rated impedance (optional) 8Ω (4Ω, 16Ω)
operation mode passive
power handling capacity passive AES/peak* 900W / 2700W*
available frequency response** 65Hz-18kHz
max. sound pressure level*** 133dB
directivity (h x v) 150°/90°
LF-transducer rated size 4 x 8"
LF-transducer voice coil diameter 2" (52mm)
LF-transducer magnet structure ferrite
HF-tweeter rated size 2 x 1.75"
HF-tweeter voice coil diameter 1.75" (43mm)
HF-tweeter magnet structure neodymium
black PU high strength structural coating standard
structural traditional painting (different colors) optional coating²
piano mirror painting (different colors) optional coating³
front covering 10mm acoustic foam
housing 15mm MDF 1.class
dimension h/w/d in mm 626/490/318
weight 29kg

* peak 10ms, with TD-8000 amplifier and ELITE-804 max controller setup
** -10dB with ELITE-804 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and ELITE-804SPL controller setup
