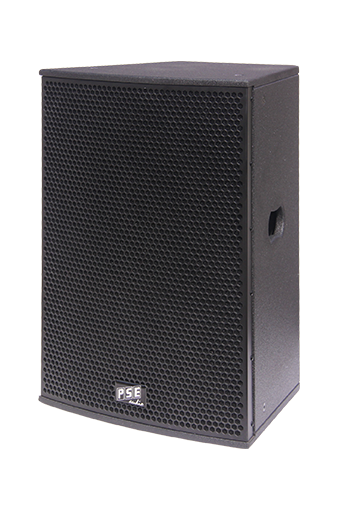

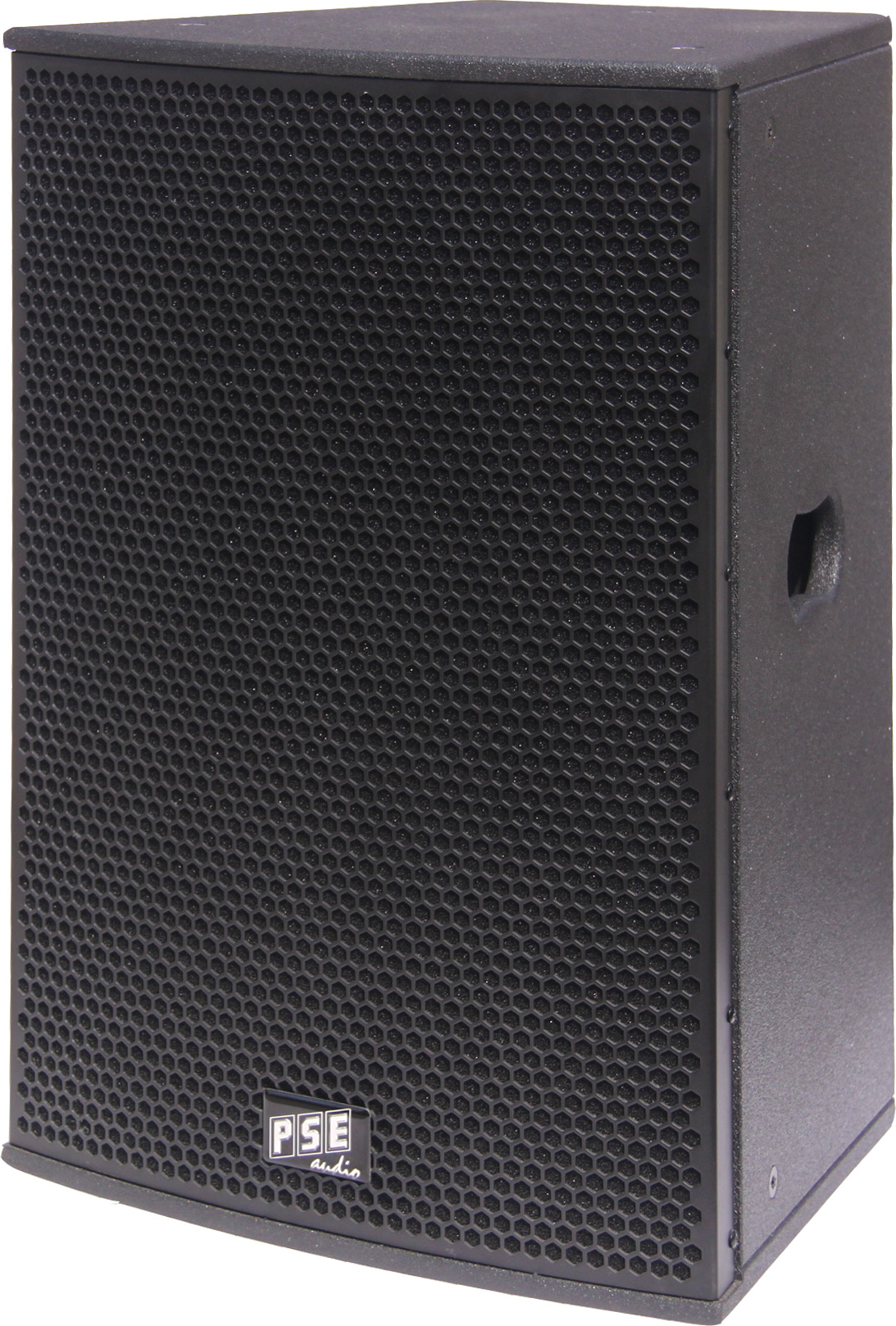

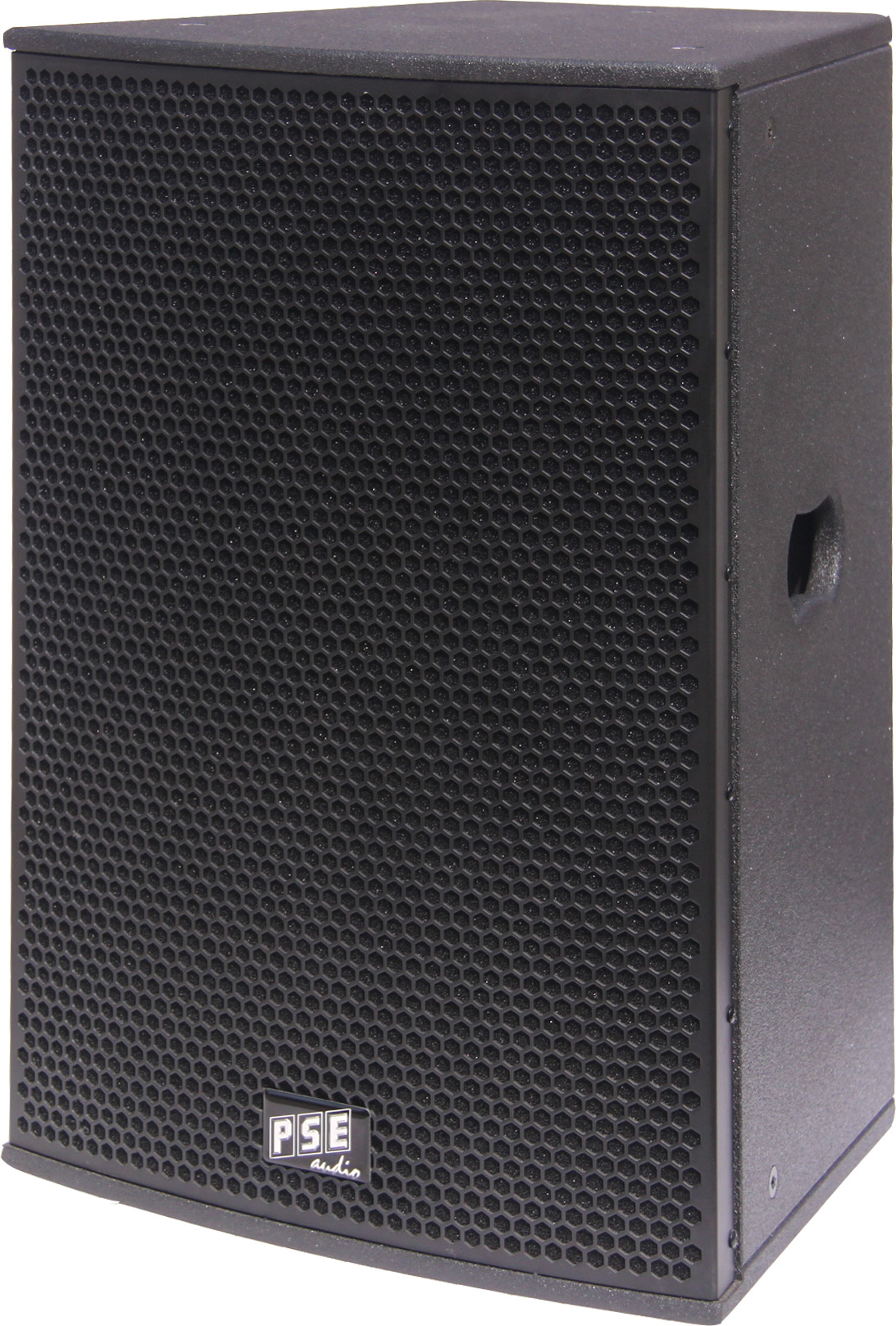

ecoline EL-12

EL -series satellite and fullrange series


ecoline EL-12          ecoline EL-12

EL-12 general description

Features EL-12

  • 12" speaker ferrite (3"/76mm voice coil)
  • 1x1.75" (45mm) compression driver ferrite
  • high frequency horn 1" throat
  • horn directivity h90°/v60°
  • 90° turnable high frequency horn to v60°/h90°
  • trapezoid housing
  • tripod (pole mount) flange
  • 12 M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing class A MDF 15mm
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Application EL-12

  • discotheque, clubs, bars, entertainment,
  • meeting room

Appliance EL-12

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • background music
  • delay line



ecoline EL-12

EL-12 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 500W / 1500W*
available frequency response** 65Hz-18kHz
max. sound pressure level*** 131dB
directivity (h x v) 90°/60° (90°rotatable)
LF-transducer rated size 12"
LF-transducer voice coil diameter 76mm/3"
LF-transducer magnet structure ferrite
HF-compression driver rated size (VC) 45mm/1.75"
HF-compression throat diameter 1"
HF-compression magnet structure ferrite
dimension h/w/d in mm 574/400/320
weight 22kg

* peak 10ms, with TD-8000 amplifier and EL-12 max controller setup
** -10dB with EL-12 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and EL-12 SPL controller setup
