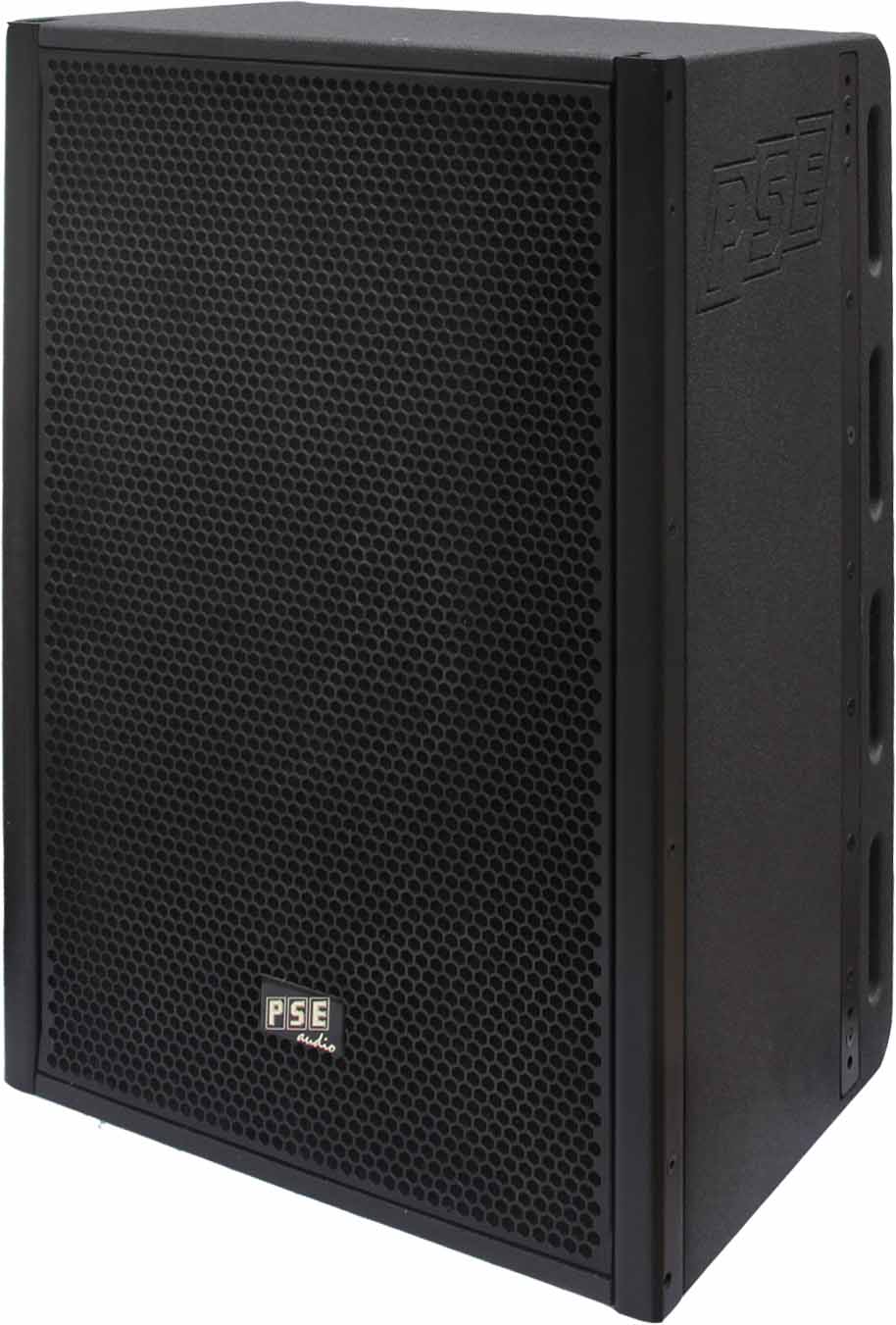

Line Array speaker cabinet
VT-68
VT-68 general description
Features VT-68
- 8x6.5" neodymium speaker (2"voice coil)
- 4x2.5" (63mm) neodymium compression driver
- 4 x high frequency planar wave guide horn
- directivity h90°/v5°
- constant horn directivity
- 3-point and 4-point rigging structure
- 2 Neutrik speakon 4-pin
- speaker signal link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- wood housing 15mm plywood
- polyurea (PU) high scratch proof coating
- optional regular painting black or white
Appliance VT-68
- starting unit für VT-68 line array
- can be used stacking applications
- high-mid unit for mobile and touring PA
- high-mid unit for fix installation
Application VT-68
- live events, live entertainment
- stadium broadcasting,
- discotheque and mobile disco event
- meeting halls broadcast system
extended system components
- LB-15* Low-Mid extension (1x15")
- B-18 subwoofer (1x18")
- VB-218 subwoofer (2x18")
*with rigging hardware
VT-68 specification
| rated impedance (optional) | 8Ω (4Ω/16Ω) |
| operation mode | bi-amp |
| power handling capacity midrange AES/peak* | 1600W / 4800W* |
| power handling capacity HF AES/peak* | 240W / 720W* |
| available frequency response** | 80Hz-20kHz |
| max. sound pressure level*** | 142dB |
| directivity (h x v) | 90°/5° |
| midrange-transducer rated size | 8x6.5" |
| midrange-transducer voice coil diameter | 2" (52mm) |
| LF-transducer magnet structure | neodymium |
| HF-compression driver rated size (VC) | 4x2.5" (63mm) |
| HF-compression throat diameter | 1.4" |
| HF-compression magnet structure | neodymium |
| dimension w/h/d in mm | 480/750/350 |
| weight | 50.5kg |
* peak 10ms, with TD-8000 amplifier and VT-68max controller setup |
|
