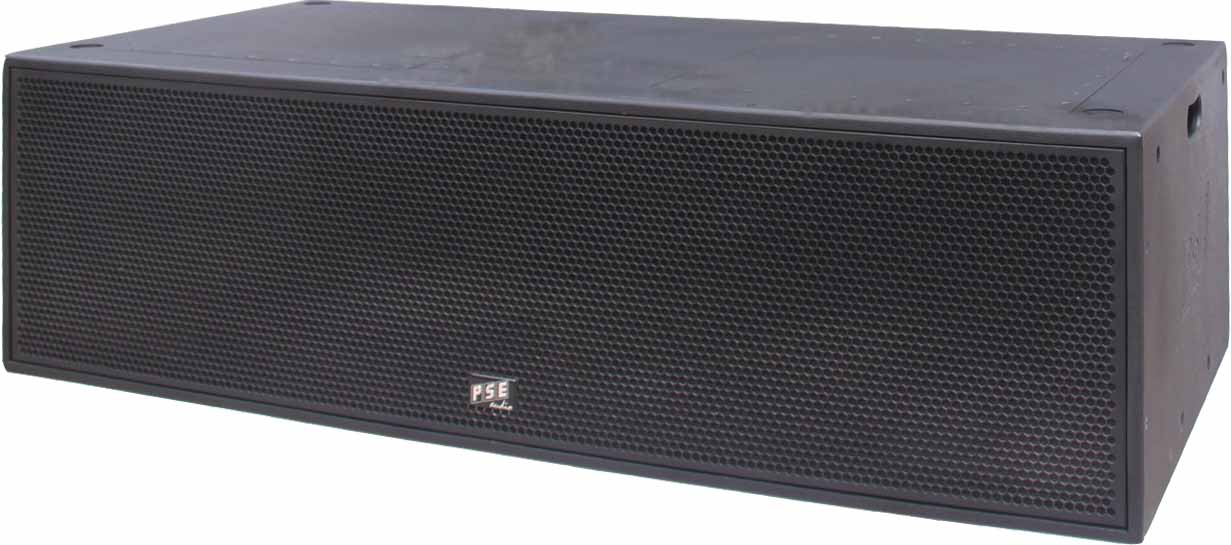

subwoofer
SB-215s
SB-215s general description
Features SB-215s
- 2x15" neodymium speaker (4"/100mm voice coil)
- bandpass design
- 8 x M8 mounting points
- 2 Neutrik speakon 4-pin
- bass link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- 4 x rubber feet
- stackable
- wood housing plywood
- polyurea (PU) high scratch proof coating
- optional regular painting black or white
SB-215s specification
| rated impedance (optional) | 8Ω (4Ω,16Ω) |
| power handling capacity AES/peak* | 2000W / 6000W* |
| available frequency response** | 32Hz-180Hz |
| max. sound pressure level*** | 133dB |
| LF-transducer rated size | 2x15" |
| LF-transducer voice coil diameter | 4"/100mm |
| LF-transducer magnet structure | neodymium |
| dimension w/h/d in mm | 1400/400/640 |
| weight | 66.5kg |
* peak 10ms, with TD-8000 amplifier and SB-215s max controller setup |
|
