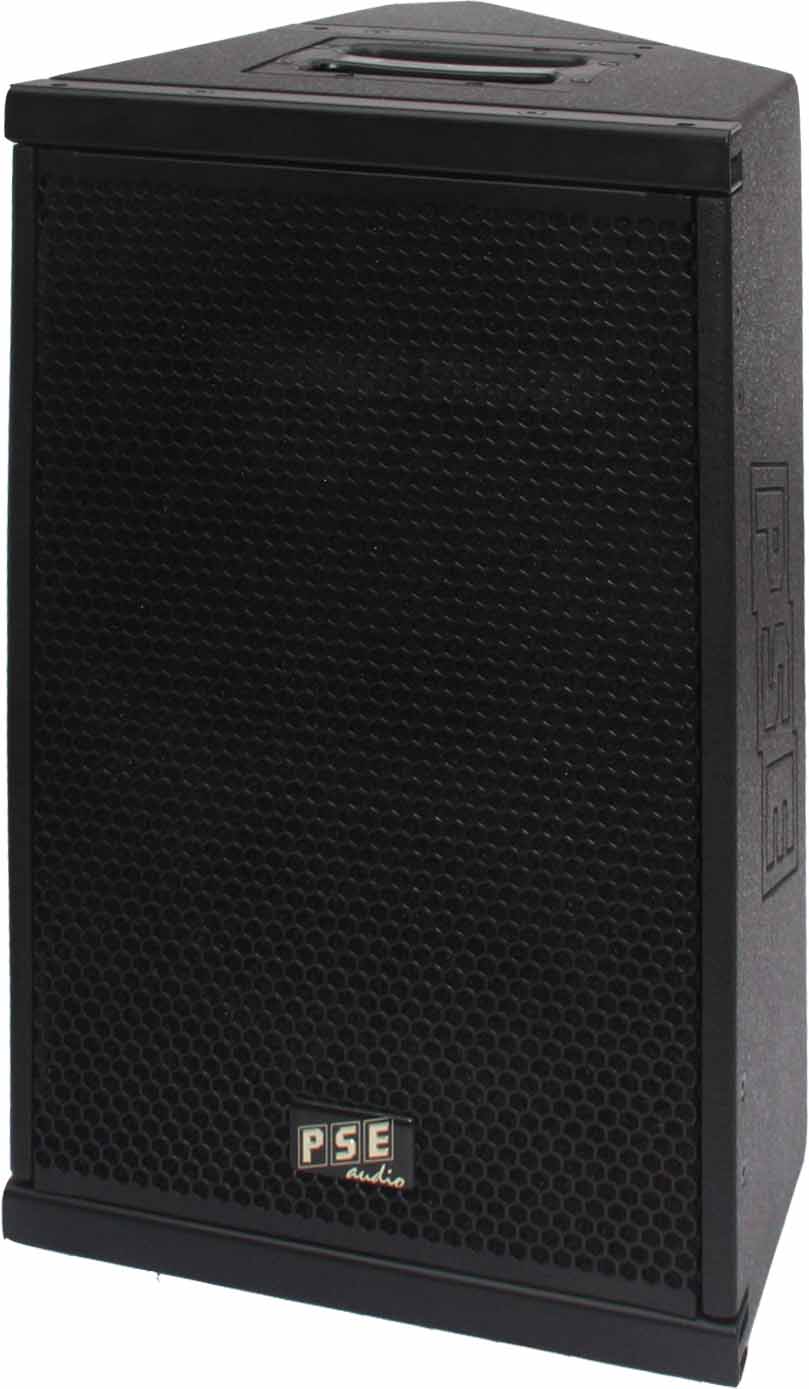

linearray Viper-pro

Line Array speaker cabinet


linearray Viper-pro          linearray Viper-pro

Viper-pro general description

Features Viper-pro

  • suitable as line array and standard cabinet!
  • 12" neodymium speaker (3"voice coil)
  • 3x 1.75" HF neodymium compression driver
  • additional horn for planar wave devices
  • additional horn for standard application
  • directivity Line Array application h90°/v10°
  • directivity standard application h60°/v40°
  • constant horn directivity
  • curving angles 0°-10° in 1° steps
  • 4-point rigging structure
  • 2 x Neutrik speakon 4-pin for Line Array mode
  • 2 x Neutrik speakon 4-pin for standard mode
  • speaker signal link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing 15mm plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Appliance Viper-pro

  • line array unit for mobile and touring PA
  • line array unit for fix installation
  • high-mid unit (satellite)
  • fullrange cabinet
  • down fill Viper and LA-3 Line Array
  • floor monitor
  • near fill
  • delay line

Application Viper-pro

  • live events, live entertainment

extended system components

  • LB-3* subwoofer (1x18")
  • VB-218pro subwoofer (2x18")
  • VB-218 subwoofer (2x18")
    *with rigging hardware

linearray Viper-pro

linearray Viper-pro

linearray Viper-pro

linearray Viper-pro

linearray Viper-pro

linearray Viper-pro

Viper-pro specification
rated impedance
operation mode bi-amp
power handling capacity midrange AES/peak* 400W / 1600W*
power handling capacity HF (line array) AES/peak* 100W / 400W*
power handling capacity HF (standard) AES/peak* 50W / 200W*
available frequency response** 58Hz-20kHz
max. sound pressure level*** 141dB
directivity line array mode (h x v) 90°/10°
directivity standard mode (h x v) 60°/40°
midrange-transducer rated size 12"
midrange-transducer voice coil diameter 3" (76mm)
LF-transducer magnet structure neodymium
HF- driver line array mode rated size (VC) 2x1.75" (45mm)
HF-driver line array mode throat diameter 2x1"
HF-driver line array mode magnet structure neodymium
HF- driver standard mode rated size (VC) 1.75" (45mm)
HF-driver standard mode throat diameter 1"
HF-driver standard mode magnet structure neodymium
dimension w/h/d in mm 580/350/435
weight 18.6kg

* peak 10ms, with TD-8000 amplifier and Viper-pro max controller setup
** -10dB with Viper-pro FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and Viper-pro SPL bi-amp controller setup
****system vertical directivity depends on quantity and curving of Viper-pro cabinets
