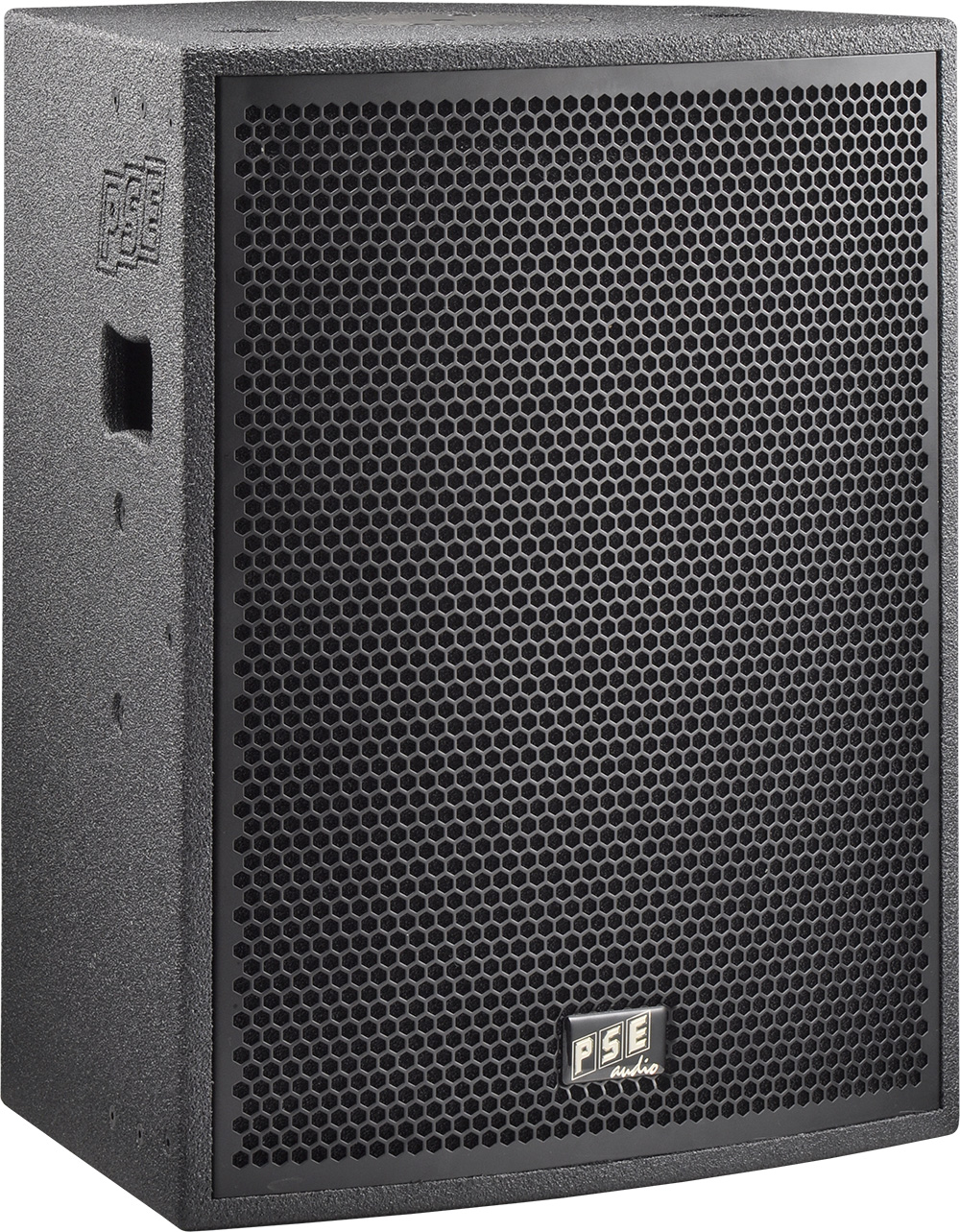

Galaxy series GX-12

Galaxy-GX-series high end multifunction coaxial series


Galaxy series GX-12          Galaxy series GX-12
GX-12 general description

Features GX-12

  • 1x12"/3" coaxial speaker neodymium
  • 12" transducer 76mm /3" voice coil
  • 12" transducer neodymium magnet
  • compression driver 3"/75mm voice coil
  • compression driver neodymium magnet
  • high frequency horn 1.4" throat
  • horn directivity 40°x60°
  • multifunction housing
  • wedge angle 45°
  • tripod (pole mounting) flange
  • 7 air-lock mounting points
  • 5 M8 mounting points
  • 1 M10 mounting point
  • 1 multi gauge plate 360° / 5° steps
  • 2 Neutrik speakon 4-pin for passive
  • 2 Neutrik speakon 8-pin for bi-amp
  • passive / bi-amp switchable
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application GX-12

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance GX-12

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • floor monitor
  • delay line


Galaxy series GX-12

GX-12 specification
rated impedance 8 Ω
operation mode switchable bi-amp/passive
power handling capacity bi-amp AES/peak* 520W / 2400W*
power handling capacity passive AES/peak* 500W / 2000W*
available frequency response** 65Hz-20kHz
max. sound pressure level*** 138dB
directivity (h x v) 60°x40°
LF-transducer rated size 12"
LF-transducer voice coil diameter 76mm/3"
LF-transducer magnet structure neodymium
HF-compression driver rated size (VC) 75mm/3"
HF-compression throat diameter 1,4"
HF-compression magnet structure neodymium
dimension h/w/d in mm 540/400/320
weight 16kg

* peak 10ms, with TD-8000 amplifier and GX-12 max controller setup
** -10dB with GX-12 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GX-12 SPL bi-amp controller setup
