k-series K-3

K-series high SPL output fully horn loaded cabinet series


k-series K-3          k-series K-3

k-series K-3          k-series K-3

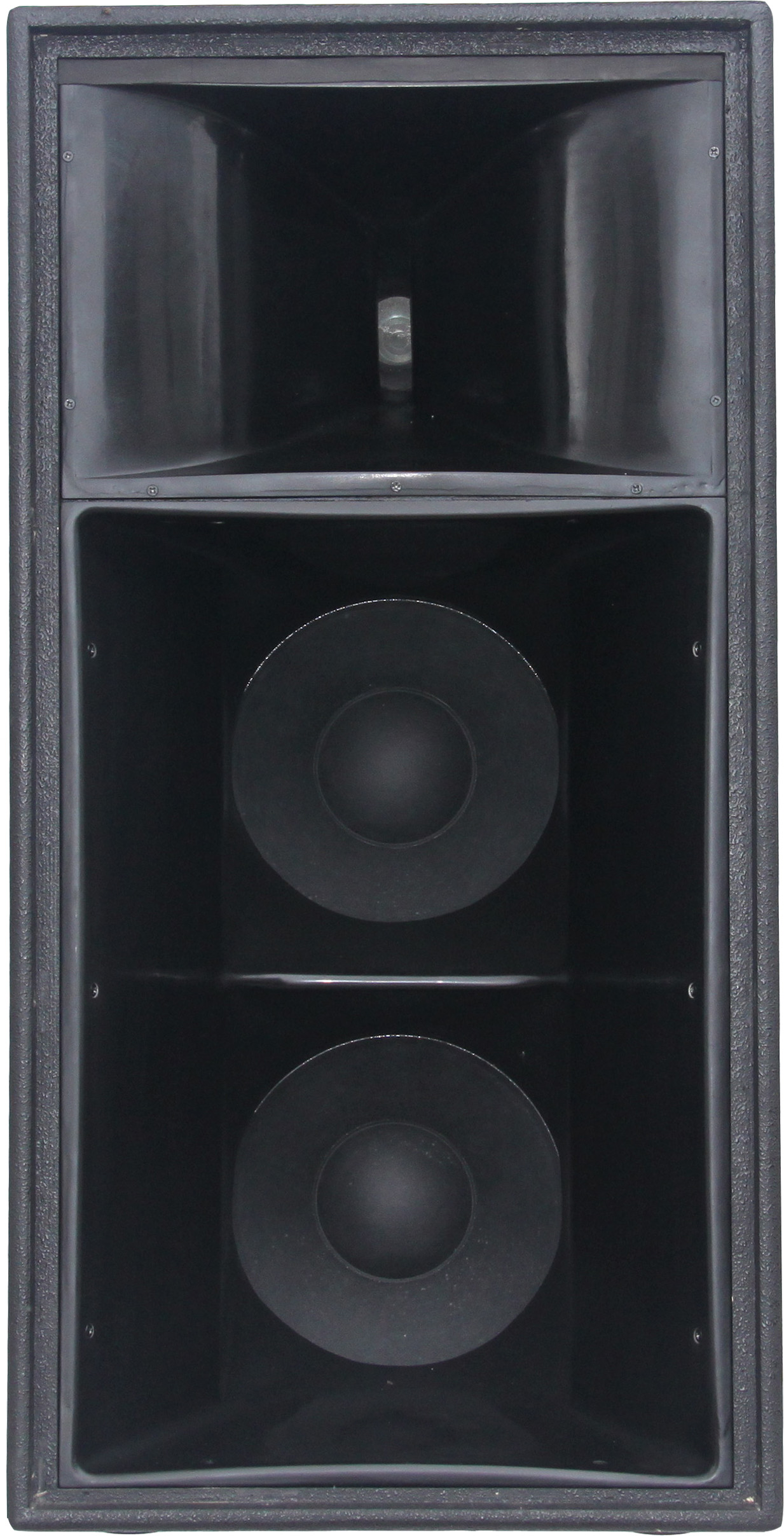

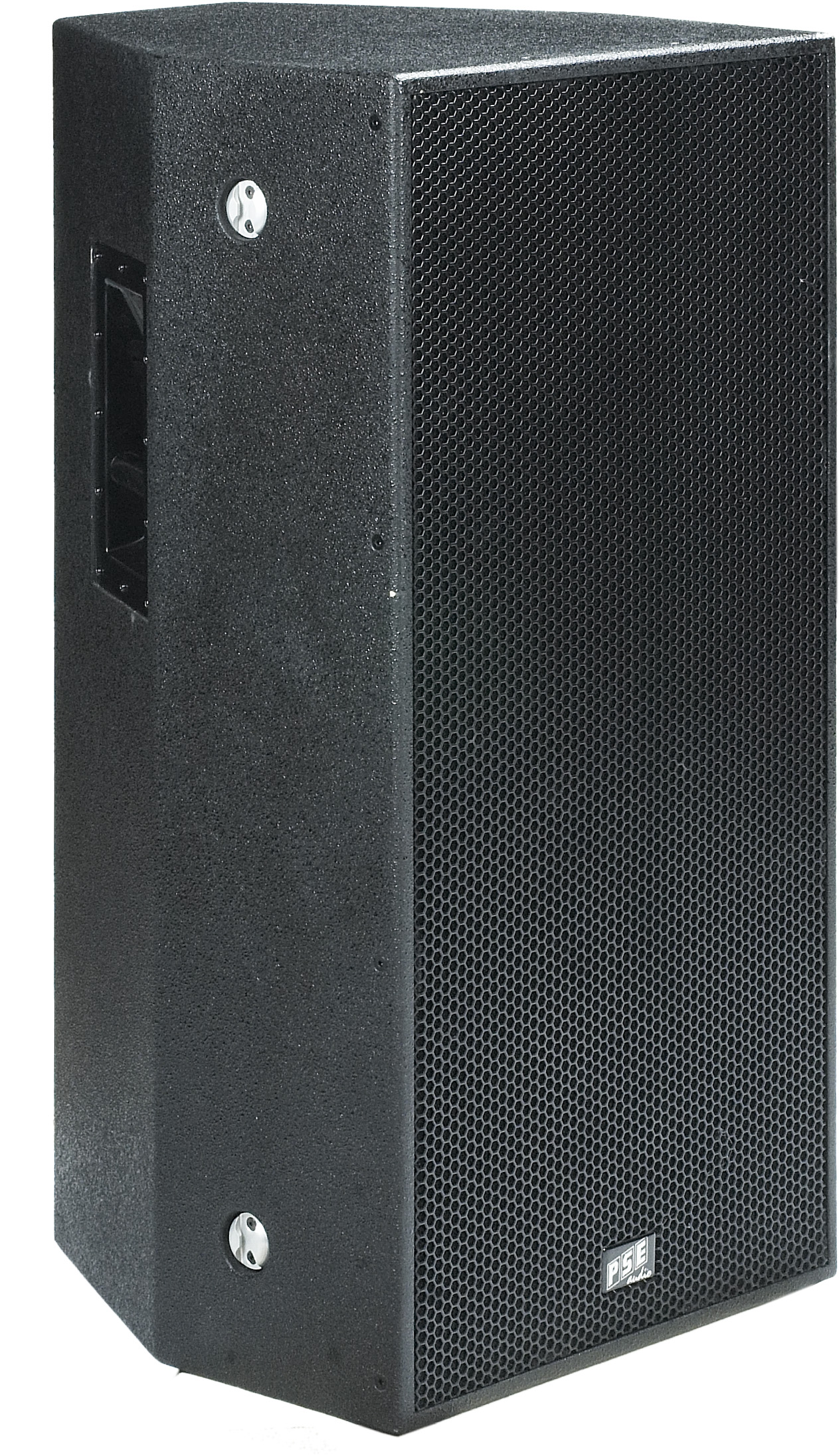

K-3 general description

Features K-3

  • 2x12" speaker neodymium (76mm voice coil)
  • 2x12" speaker hornloaded
  • 1x4" (100mm) compression driver neodymium
  • high frequency horn 2" throat
  • horn directivity h60°/v40°
  • housing cluster angle 30°
  • 7 air-lock mounting points
  • 2 Neutrik speakon 4-pin
  • bi-amp
  • cabinet link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm, 27mm
  • polyurea (PU) high scratch proof coating

Application K-3

  • live events, live entertainment
  • mobile disco
  • discotheque

Appliance K-3

  • high-mid unit for mobile and touring PA
  • high-mid unit for fix installation


k-series K-3

K-3 specification
rated impedance 8 Ω
operation mode switchable bi-amp
power handling capacity midrange AES/peak* 800W / 3200W*
power handling capacity HF AES/peak* 100W / 300W*
available frequency response** 130Hz-20kHz
max. sound pressure level*** 145dB
directivity (h x v) 60°/40°
midrange-transducer rated size 2x12"
midrange-transducer voice coil diameter 3" / 76mm
LF-transducer magnet structure neodymium
HF-compression driver rated size (VC) 4" / 100mm
HF-compression throat diameter 2"
HF-compression magnet structure neodymium
dimension h/w/d in mm 1000/500/500
weight 51kg

* peak 10ms, with TD-8000 amplifier and K-3 max controller setup
** -10dB with K-3 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and K-3 SPL bi-amp controller setup
